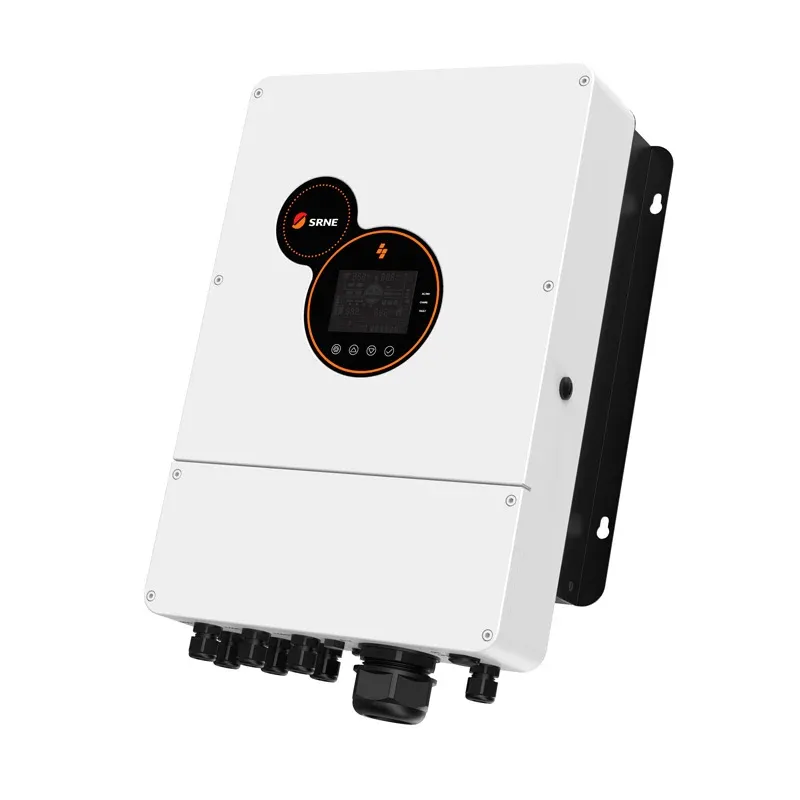

6000W HESP4860S100-H Inverter: 230Vac output, pure sine wave, 100A hybrid charging, 2 MPPT, IP65, 5-year warranty, suitable for residential/small commercial use.
Product Information
| Model | HESP48(36-60)S100-H |
| Output Voltage | 220V/230V |
| Max Output Power | 3.6-6KW |
| PV Input Voltage | 120～450Vdc |
| Battery Voltage | 40-60V |
| Weight | 22.1KG |
| Dimension | 556*345*182mm(W/H/D) |
| Warranty | 5 Years |
Specifications
| Model | HESP4836S100-H | HESP4840S100-H | HESP4846S100-H | HESP4860S100-H | HESP4880S100-H |
| AC OUTPUT (LOAD) | |||||
| Rated Output Power | 3,600W | 4,000W | 4,600W | 5,500W | 6,000W |
| Max. Peak Power | 7,200VA | 8,000VA | 9,200VA | 11,000VA | 12,000VA |
| Rated Output Voltage | 230Vac (Single phase) | (200/208/220/240Vac settable) | |||
| Load Motor Capacity | 3HP | 4HP | |||
| Rated Frequency | 50/60Hz ±0.3Hz | ||||
| Waveform | Pure Sine Wave | ||||
| Switch Time | 10ms (typical) | ||||
| AC OUTPUT (GRID) | |||||
| Rated Output Power | 3,600W | 4,000W | 4,600W | 5,500W | 6,000W |
| Max. Apparent Power | 3,960VA | 8,000VA | 9,200VA | 11,000VA | 12,000VA |
| Power Factor | 0.8 leading to 0.8 lagging | ||||
| Rated Voltage | 220/230Vac | ||||
| Rated AC Frequency | 50/60Hz | ||||
| Rated AC Output Current | 15.7Aac | 17.4Aac | 20Aac | 24Aac | 26Aac |
| THD | <3% | ||||
| BATTERY | |||||
| Battery Type | Li–ion / Lead–Acid / User Defined | ||||
| Rated Battery Voltage | 48V | ||||
| Battery Voltage Range | 40~60Vdc | ||||
| Max. Grid Charging Current | 60Adc | ||||
| Max. Generator Charging Current | 60Adc | ||||
| Max. Hybrid Charging Current | 100Adc | ||||
| PV INPUT | |||||
| No. of MPPT Trackers | 2 | ||||
| Max. PV Input Power | 2,700W/2,700W | 3,000W/3,000W | 3,500W/3,500W | 4,000W/4,000W | 4,500W/4,500W |
| Max. PV Input Current | 16Adc/16Adc | ||||
| Max. Short Circuit Current | 27Adc/27Adc | ||||
| Max. Open Circuit Voltage | 500Vdc | ||||
| MPPT Operating Voltage Range | 120~450Vdc | ||||
| GRID/GENERATOR INPUT | |||||
| Input Voltage Range | 90~280Vac | ||||
| Input Frequency Range | 50/60Hz | ||||
| Bypass Overload Current | 40Aac | ||||
| EFFICIENCY | |||||
| MPPT Tracking Efficiency | 99.9% | ||||
| Max. Efficiency | 97.5% | ||||
| European Efficiency | 97% | ||||
| GENERAL DATA | |||||
| Parallel Capacity | 1~6 Units (More than 3 units in parallel can form a three-phase output) | ||||
| Dimension | 556*345*182mm | Humidity | 0~100% | ||
| Weight | 22.1kg | Cooling Method | Heat sink + intelligent fan cooling | ||
| Protection Degree | IP65 | Warranty | 5 years | ||
| Temperature | -25 to +60°C, >45°C Derate | Communication | RS485/CAN/USB/Dry Contact | ||
| External Module (Optional) | Wi-Fi/GPRS | Noise | <60dB | ||
| Certificate | ENS0549-1,G99,NRS-097,VDE-ARN-4105,CE021,UNE217002,IEC62109-1,IEC62109-2,EN61000-6-1,EN61000-6-3,FCC 15 class B,ROHS | ||||
| PROTECTION | |||||
| PV Reverse Protection | Yes | Anti-Islanding Protection | Yes | ||
| Residual-Current Monitoring | Yes | Insulation Resistance Monitoring | Yes | ||
| Output Short-Circuit Protection | Yes | Output Over-Current Protection | Yes | ||
| Over-Voltage Protection | AC type II/DC type III | Surge Protection | AC type II/DC type II | ||
