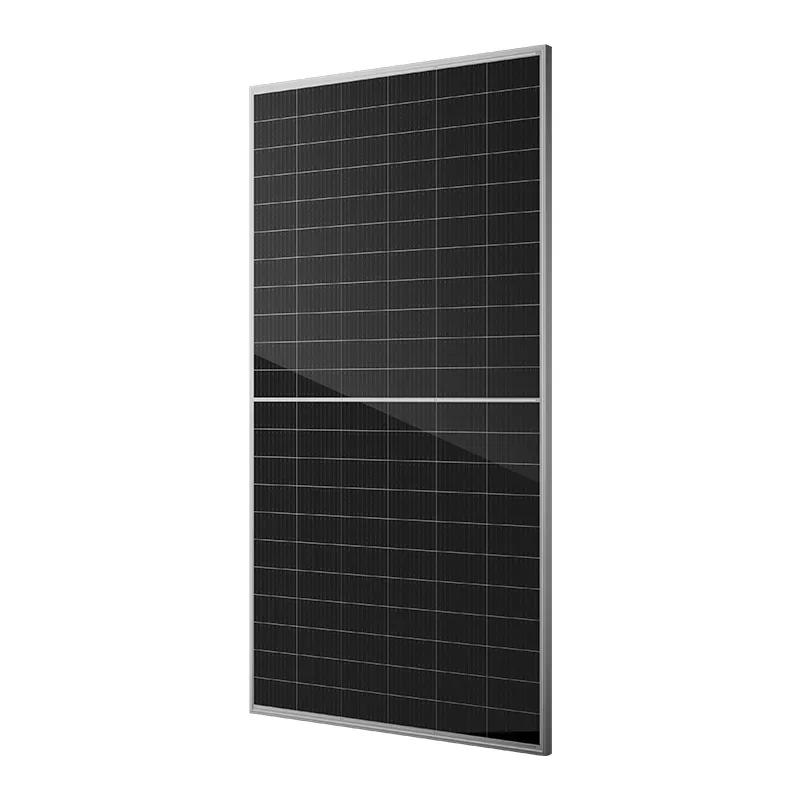

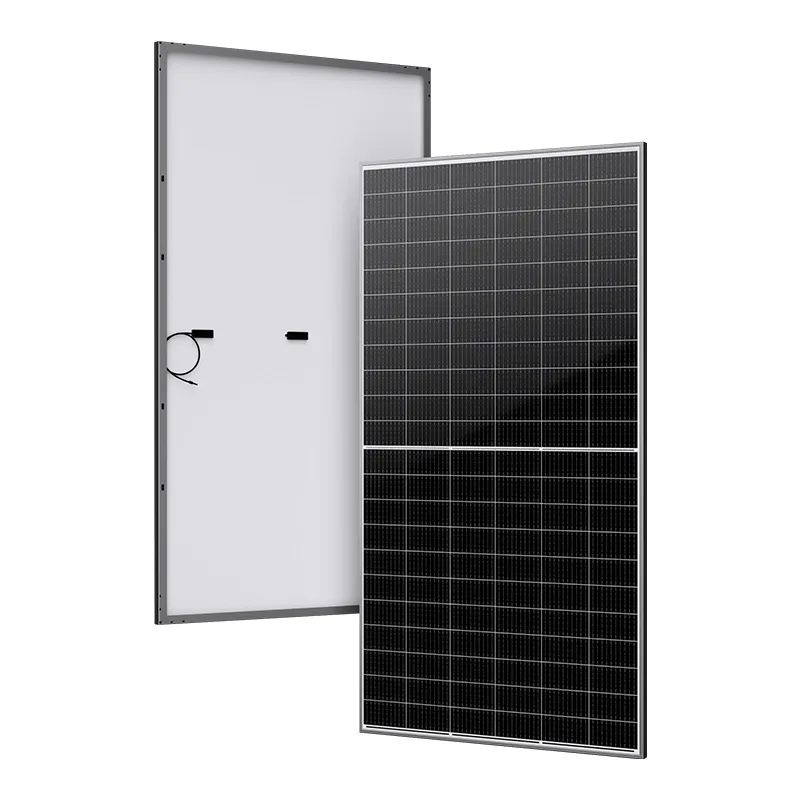

ORY670-66M-T12 P-Type Solar Panel, 670W, 21.5% efficiency, 210mm Perc cells, CE/TUV certified, ideal for residential & commercial PV systems.
Product Information
| Model | ORY670-66M-T12 |
| Rated Power | 670W |
| Dimension | 2385*1303*35mm |
| Weight | 32Kg |
| No.Of Cells | 132 |
| Cell Type | 210mm Perc |
| Module Color | silver |
| Efficiency | 21.50% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Cell Orientation | 132 cells | ||||
| Dimension | 2384x1303x35mm | ||||
| Weight | 33.6kg | ||||
| Glass | 3.2mm High Transmission,AR Coated Heat Strengthened Glass | ||||
| Frame | Anodized aluminum alloy frame | ||||
| Junction Box | IP68,three diodes | ||||
| Output Cable | 4mm2,280/280mm Length can be customized | ||||
| Packaging | 31pcs/pallet, 558pcs/40'HQ | ||||
| Maximum Power(Pmax) | 650w | 655w | 660w | 665w | 670w |
| Maximum Power Voltage(Vmp) | 37.4v | 37.6v | 37.8v | 38.00v | 38.20v |
| Maximum Power Current(lmp) | 17.39A | 17.43A | 17.47A | 17.51A | 17.55A |
| Open-circuit Voltage(Voc) | 45.30V | 45.50V | 45.70V | 45.90V | 46.10V |
| Short-circuit Current(lsc) | 18.44A | 18.48A | 18.53A | 18.57A | 18.62A |
| Module Efficiency(%) | 20.90% | 21.10% | 21.20% | 21.40% | 21.60% |
