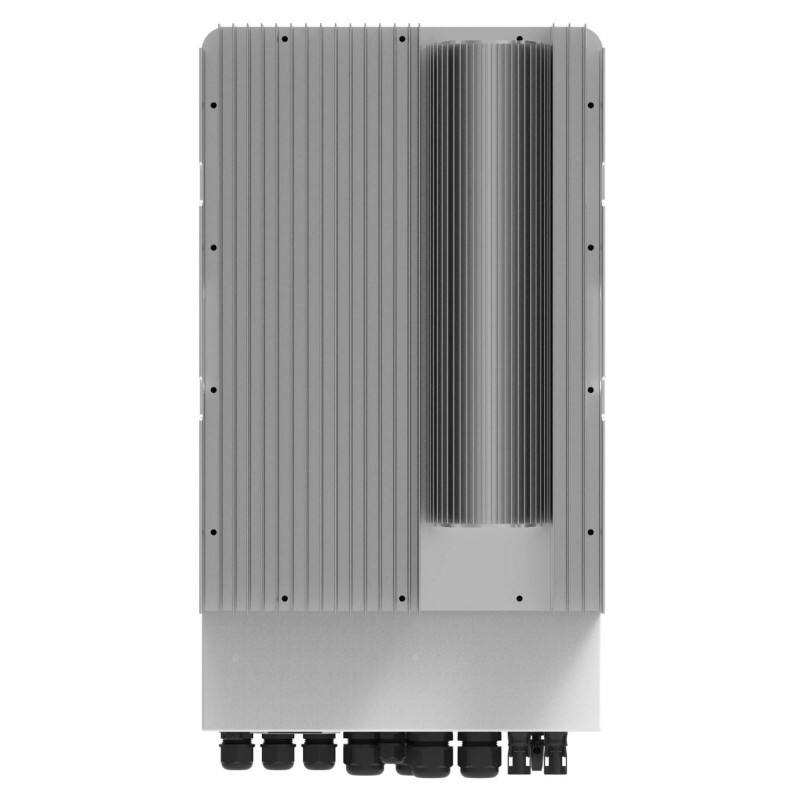

High-efficiency single-phase inverter, lightweight 20.5kg design for easy installation, wide PV voltage range, 5-year warranty, ideal for home solar applications.
Product Information
| Model | SUN 5k-SG03LP1-EU |
| Output Voltage | 220Vac single phase 50Hz |
| Max Output Power | 50000w |
| PV Input Voltage | 125~500Vdc |
| Battery Voltage | 40-60V |
| Weight | 20.5kg |
| Dimension | 330mmx580mmx232mm(W/H/D) |
| Certification | CE,VDE0126,EN50549,IEC62116,IEC61727,IEC 60068, IEC 61683,G98/G99,G100,AS4777 |
| Warranty | 5 Years(10 Years Optional) |
Specifications
| Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU |
| Battery Input Data | |||
| Battery Type | Lead-acid or Li-Ion | ||
| Max. Charging Current(A) | 90 | 120 | 135 |
| Max. Discharging Current(A) | 90 | 120 | 135 |
| External Temperature Sensor | yes | ||
| Charging Curve | 3 Stages/Equalization | ||
| Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
| PV String Input Data | |||
| Max.DCInput Power (W) | 4680 | 6500 | 7800 |
| Rated PV Input Voltage(V) | 370(125~500) | ||
| Start-up Voltage (V) | 125 | ||
| MPPTVoltage Range(V) | 150~425 | ||
| Full Load DCVoltage Range(V) | 300~425 | ||
| PVInput Current(A) | 13+13 | ||
| Max.PVlsc(A) | 17+17 | ||
| No.of MPP Trackers | 2 | ||
| No.of Strings Trackers | 1 | ||
| General Data | |||
| Operating Temperature Range(C) | 40~60°C,>45C derating | ||
| Cooling | Natural coolin | ||
| Noise(dB ) | <30 dB | ||
| Communication with BMS | SRS485;CAN | ||
| Weight (kg) | 20.5 | ||
| Size(mm) | 330Wx580Hx232D | ||
| Protection Degree | IP65 | ||
| Installation Style | Wall-mounted | ||
| Warranty | 5 years | ||
