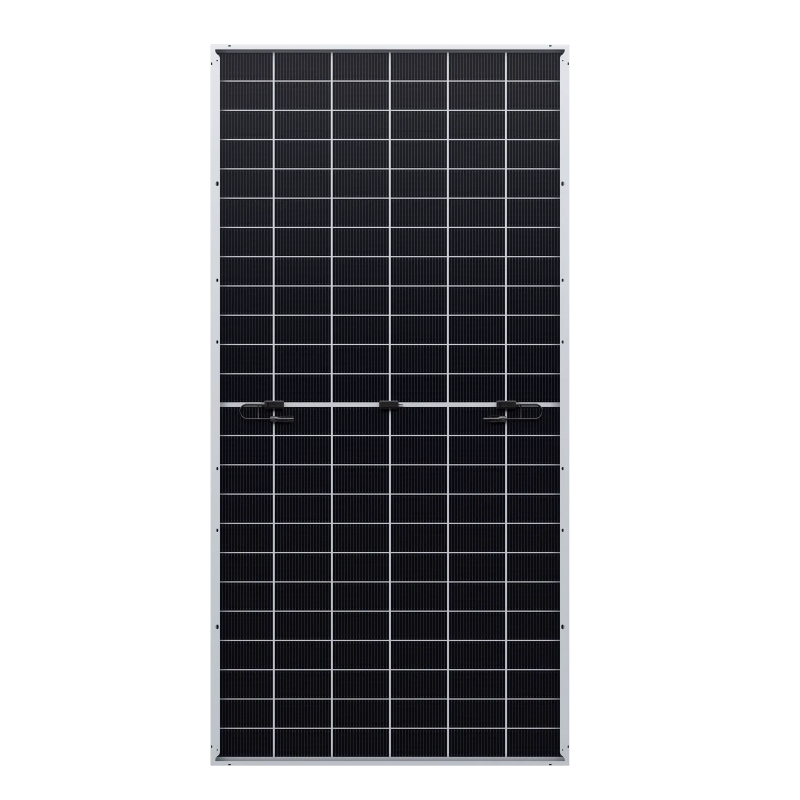

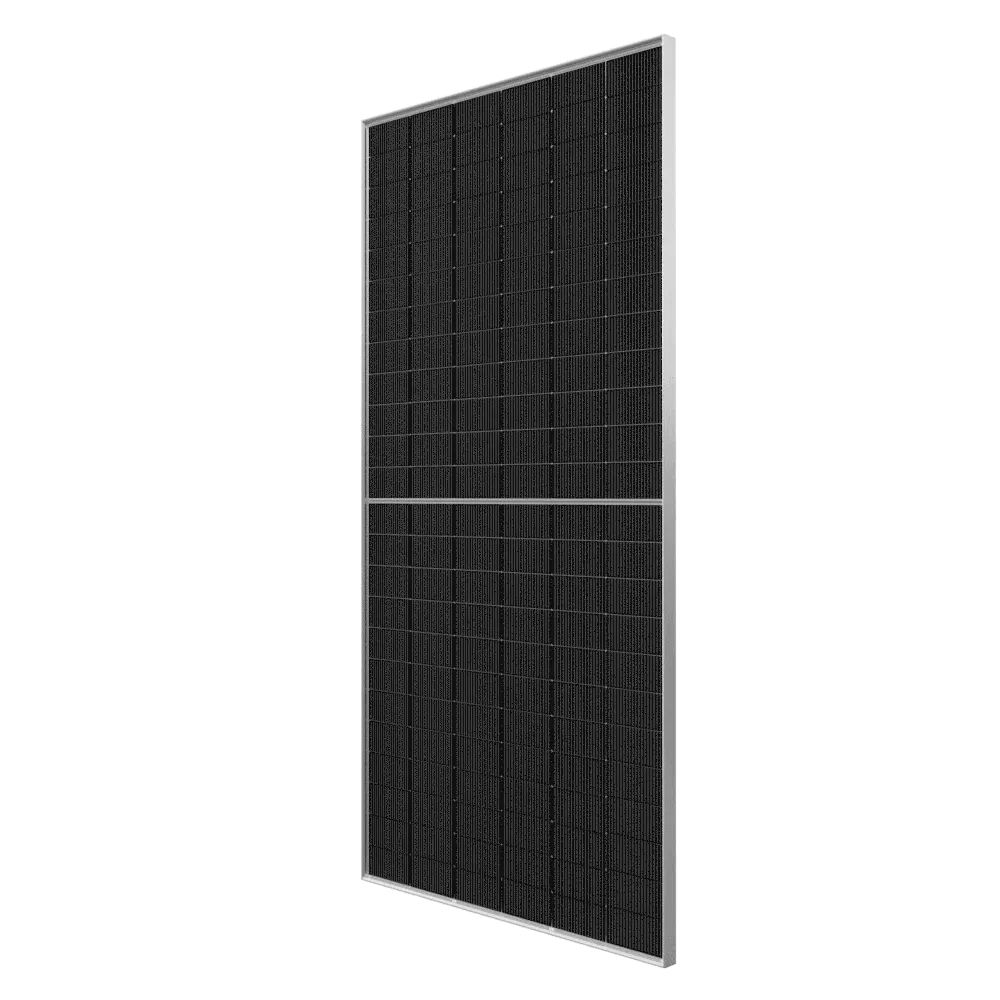

HJT heterojunction solar module ORY720-740-66M-T12J (720-740W, 2384x1303x35mm, 38.7kg) 23.82% efficiency, CE/TUV approved, low degradation for long-term use
Product Information
| Model | ORY720-740-66M-T12H |
| Rated Power | 740W |
| Dimension | 2384x1303x35mm |
| Weight | 38.7kgs |
| Junction Box | IP68,three diiodes |
| Cell Type | HJT |
| Efficiency | 23.83% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Number of Cells | 132 Cells (6x22) | ||||
| Dimension | 2384x1303x35mm | ||||
| Weight | 38.7kg | ||||
| Glass |
Front Glass:2.0mm High transparency solar glass Back Glass:2.0mm High transparency solar glass |
||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction Box | IP68 Rated,three diodes | ||||
| Output Cable |
4mm²,300mm in length length can be customized/UV resistant |
||||
| Packaging | 31pcs/pallet, 558pcs/40'HQ | ||||
| Maximum Power(Pmax) | 720W | 725W | 730W | 735W | 740W |
| Maximum Power Voltage(Vmp) | 42.68V | 42.82V | 42.96V | 43.10V | 43.24V |
| Maximum Power Current(Imp) | 16.87A | 16.39A | 16.99A | 17.05A | 17.11A |
| Open-circuit Voltage(Voc) | 50.74V | 50.89V | 51.04V | 51.19V | 51.34V |
| Short-circuit Current(Isc) | 17.67A | 17.73A | 17.79A | 17.85A | 17.91A |
| Module Efficiency(%) | 23.18% | 23.34% | 23.50% | 23.66% | 23.82% |
