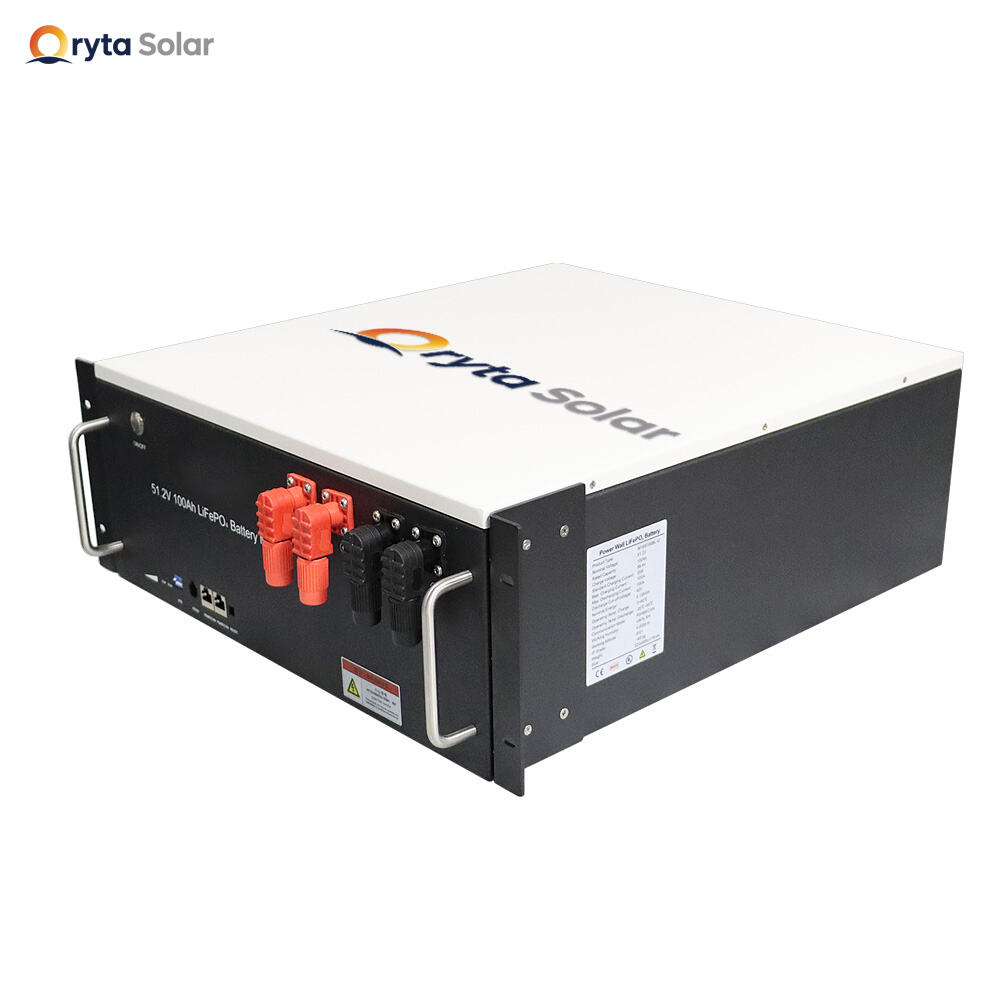

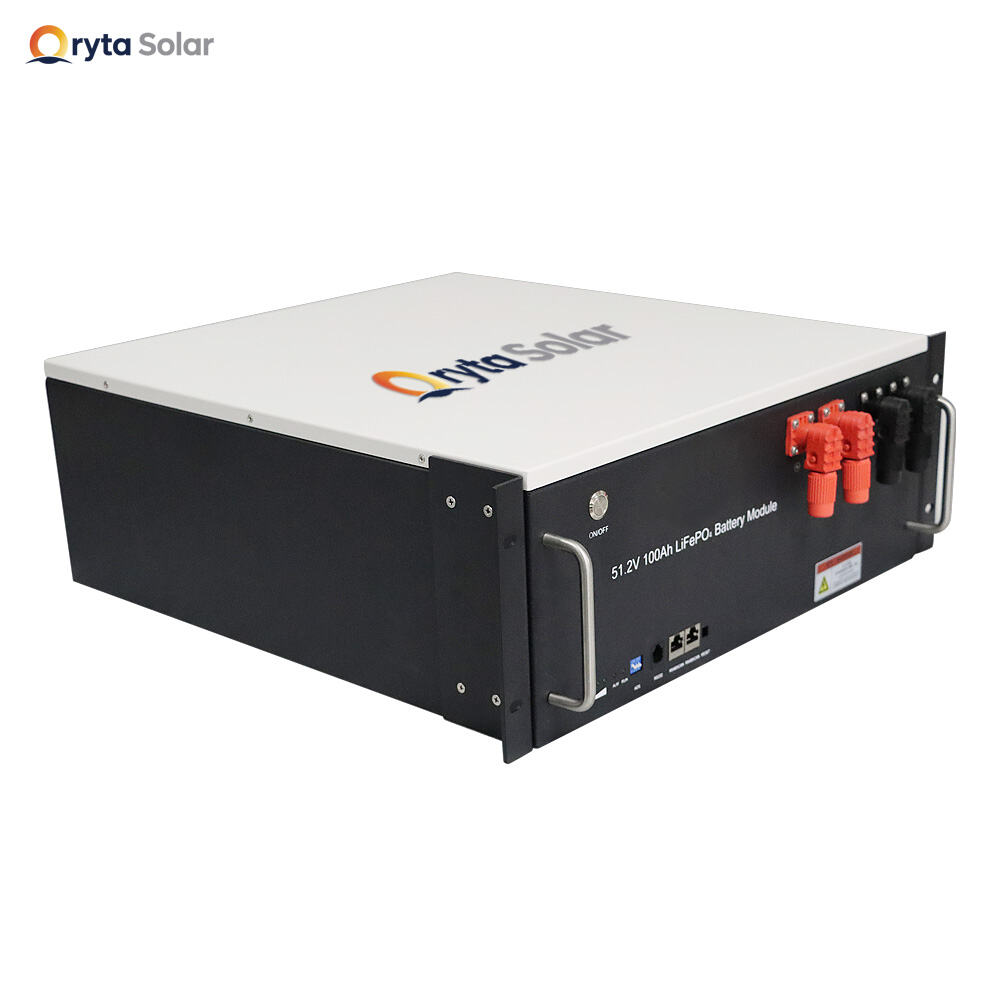

ORY-HR200 features 51.2V, 100Ah capacity, and 6000 cycle life. Certified CE/MSDS/UN38.3, this 50Kg, 630×470×270mm unit is engineered for durable, safe power in low-voltage applications.
Product Information
| Model | ORY-HR100 |
| Battery Energy Capacity | 5.12Kwh |
| Rated Voltage | 51.2V |
| Rated Cell Capacity | 100Ah |
| Application | High Voltage |
| Weight | 53kg |
| Cycle Times | 6000 Times |
| Certification | CE MSDS UN38.3 |
Specifications
| ltem | Specifications |
| Rated energy (kWh) | 5.12KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 100Ah |
| Working Voltage(V) | 42V~58.4V |
| Rated charge/discharge Current(A) | 52A |
| Maximum charge/discharge current | 104A |
| Working Temperature | 0~40C(Charge)-20~40C(Discharge) |
| Weight(kg) | 50Kg+3kg |
| Dimension(mm) | 630x470x270mm |
| Cycle life | 6000 cycles |
