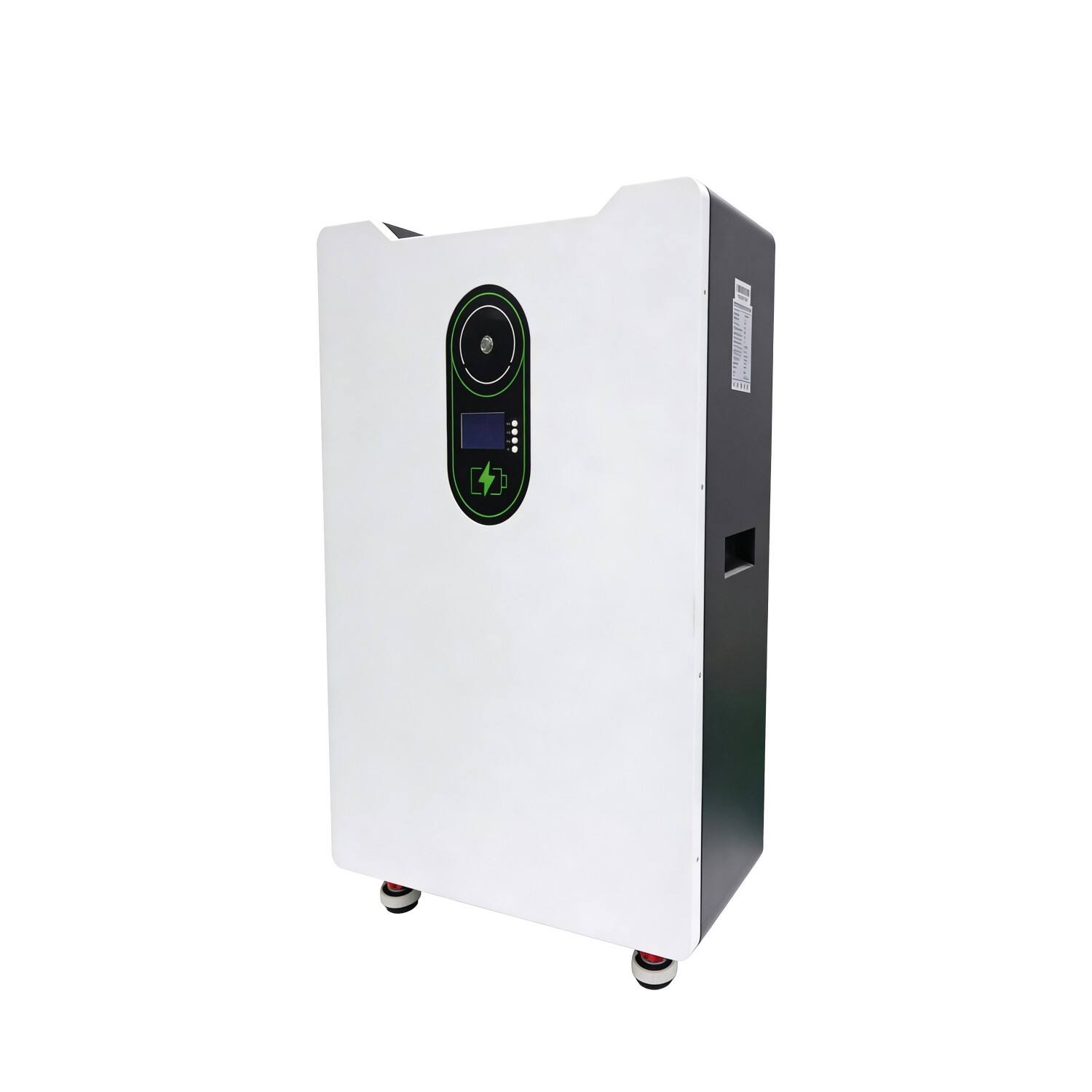

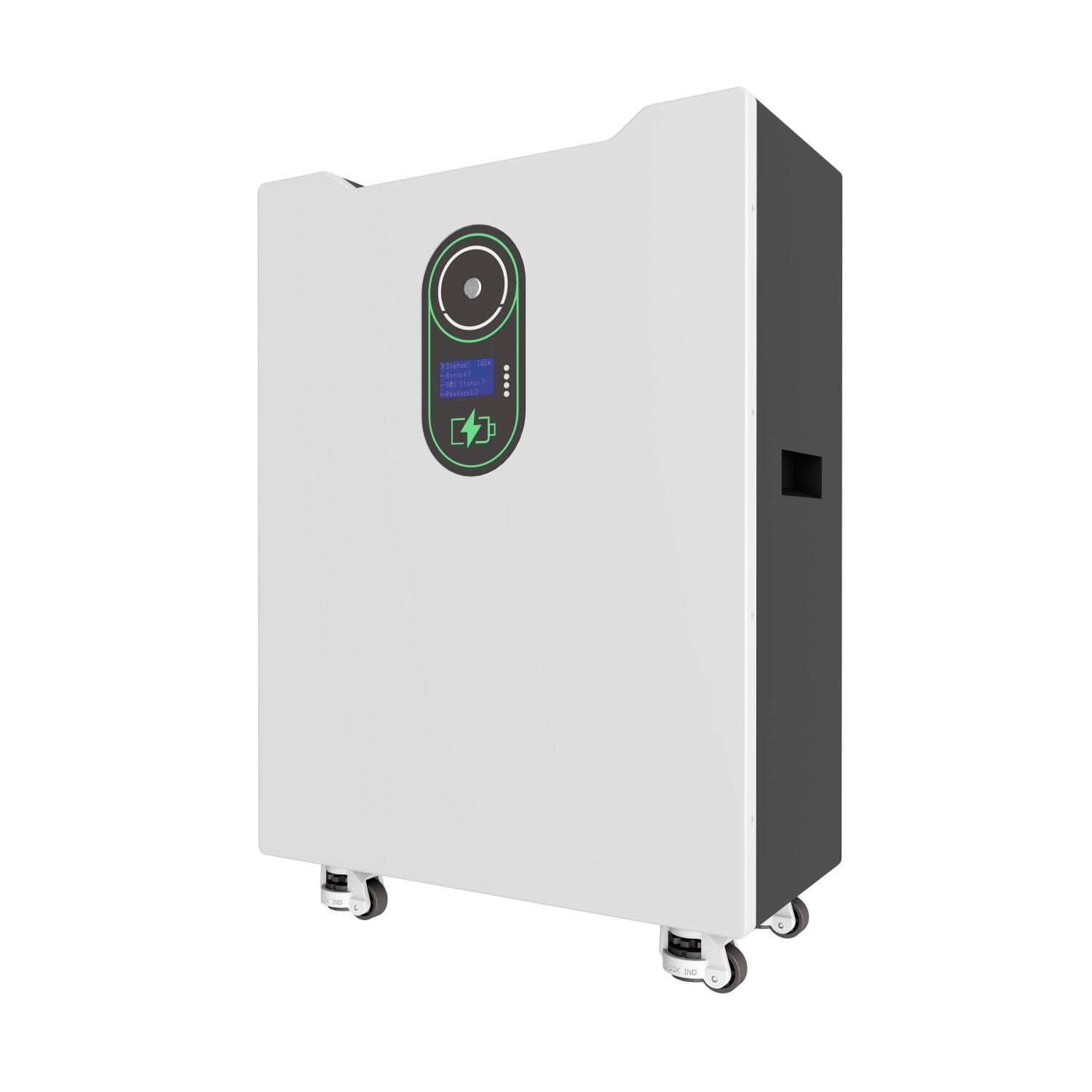

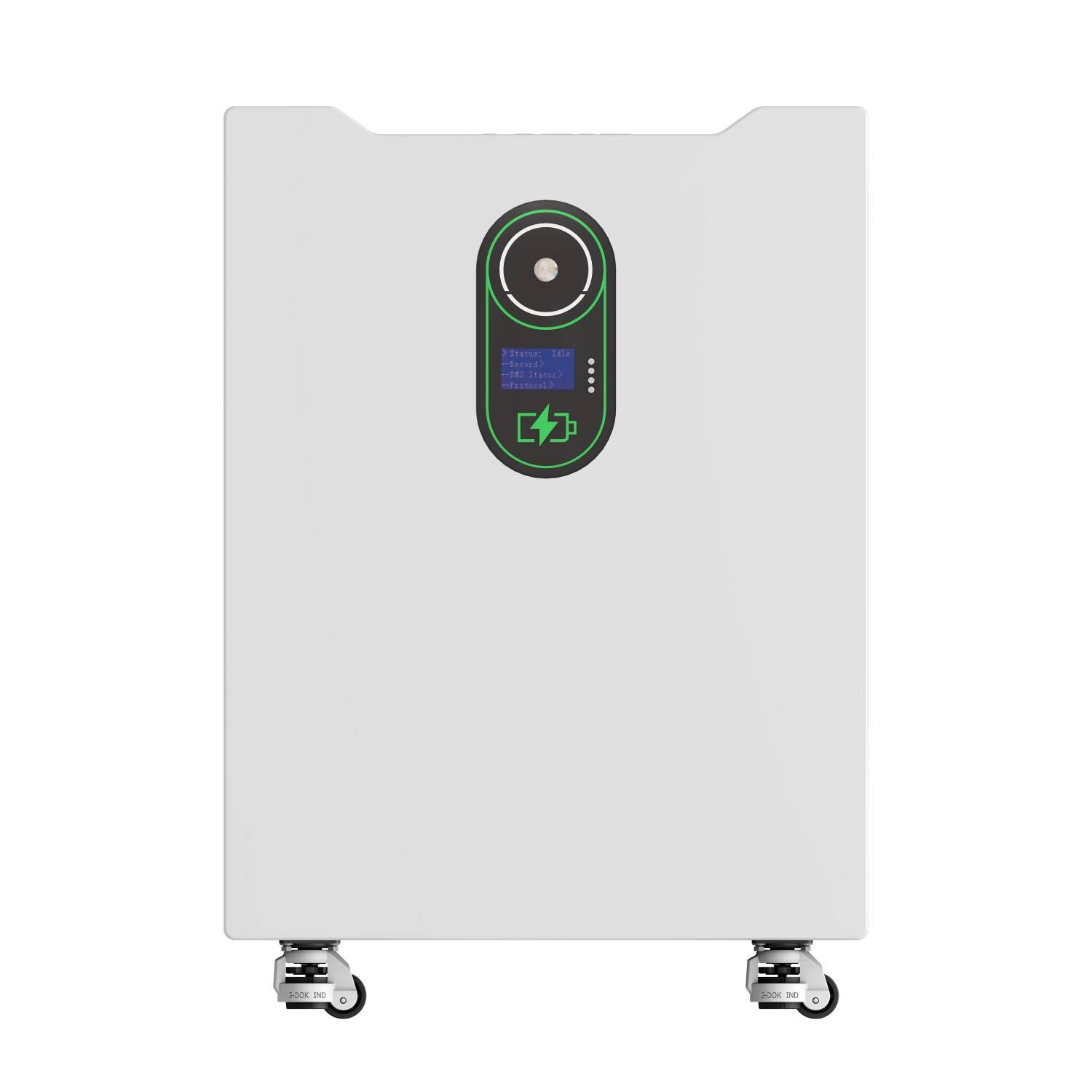

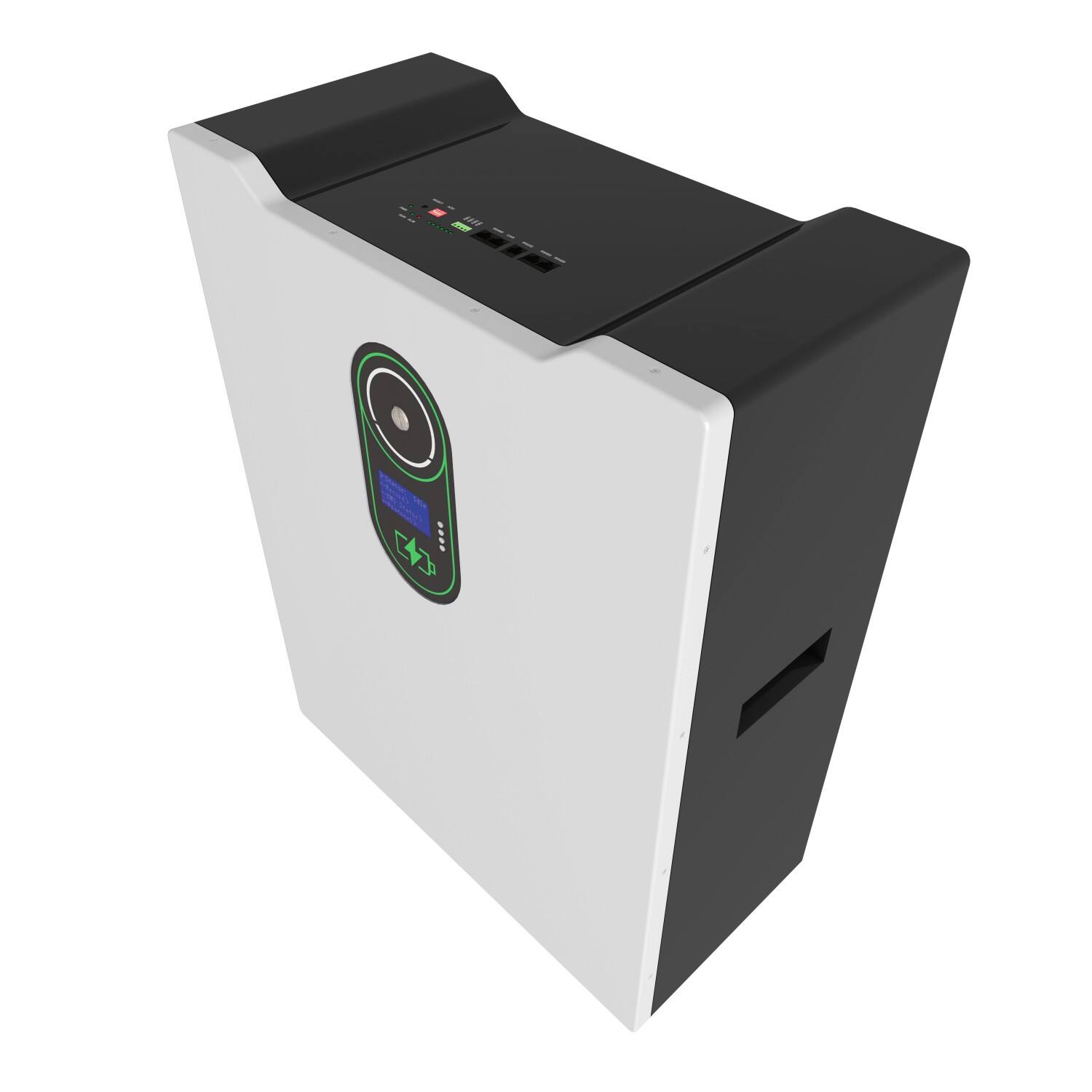

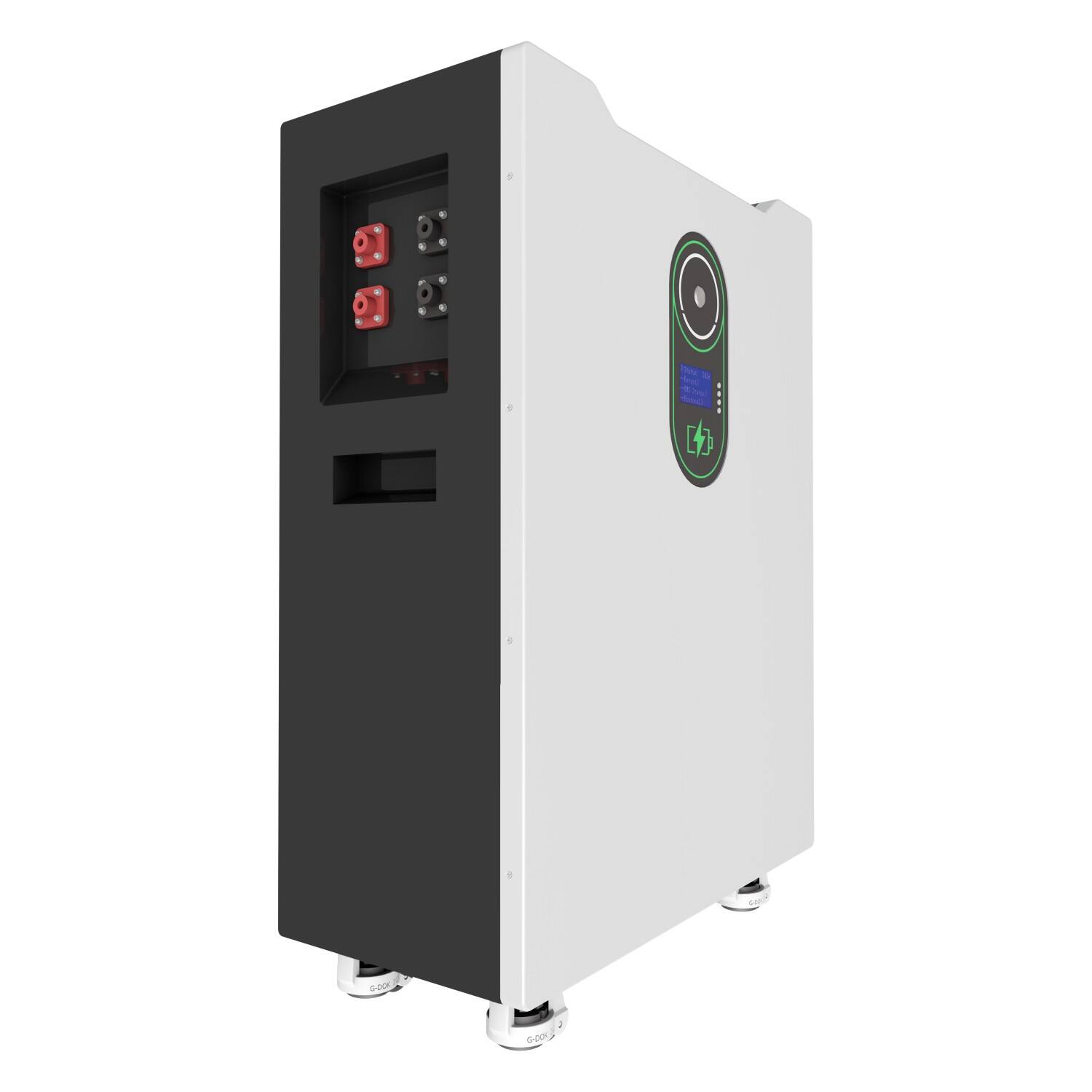

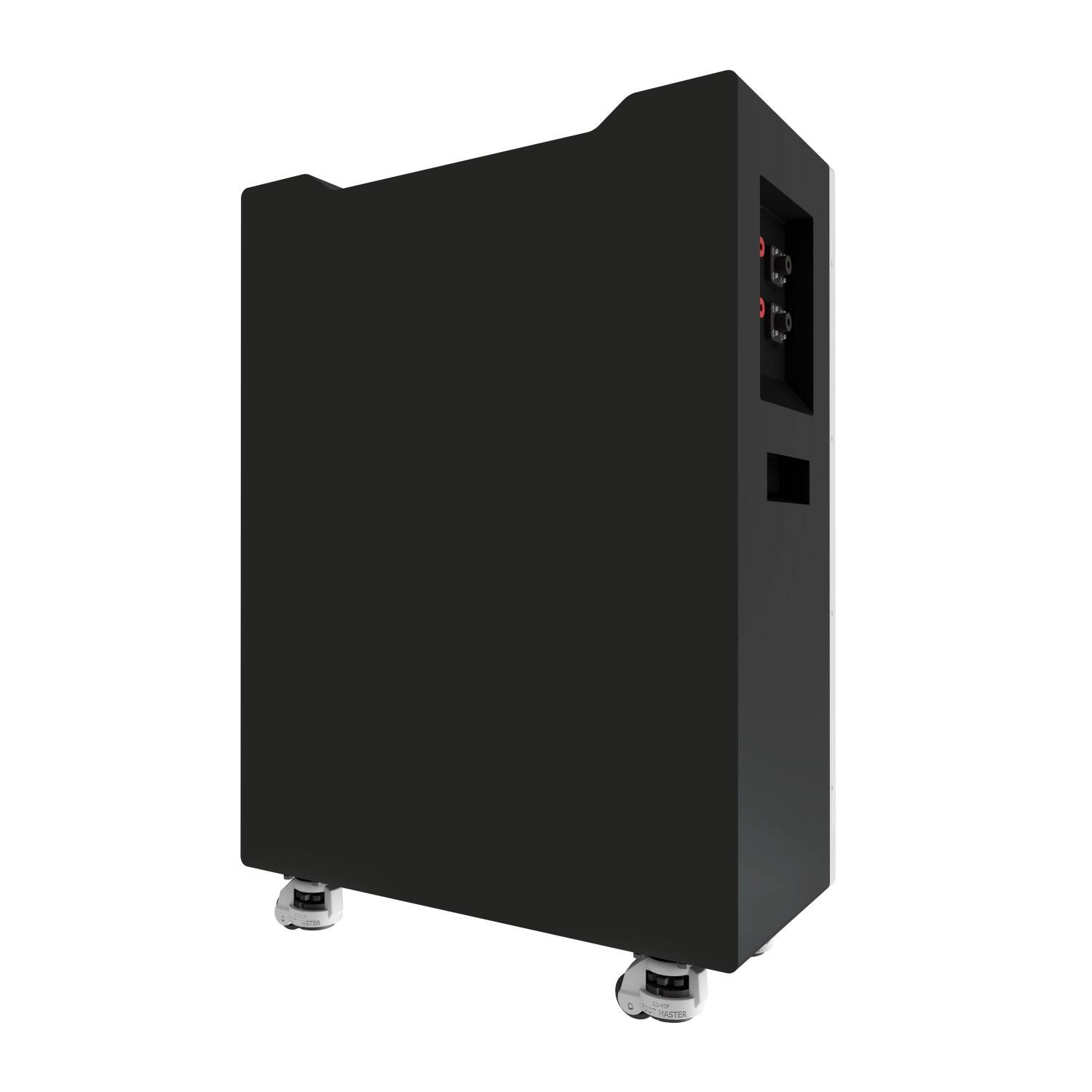

ORY-LVL280 LiFePO4 battery: 51.2V 280Ah 14.336KWh, 200A max charge/discharge, -20~65℃ operating temp, IP21 protection, 127kg, 580×750×280mm, ideal for solar and RV energy storage.
Product Information
| Model | ORY-LVL280 |
| Battery Energy Capacity | 14.336Kwh |
| Rated Voltage | 51.2V |
| Rated Cell Capacity | 280Ah |
| Application | Low Voltage |
| Weight | 127Kg |
| Cycle Times | 6000 Times |
| Certification | CE,UN38.3,MSDS,IEC62619 |
Specifications
| Parameter | Specification |
| Product Model | M16S280BL-F |
| Battery Chemistry | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2V |
| Rated Capacity | 280Ah |
| Charging Voltage | 58.4V |
| Standard Charging Current | 56A |
| Maximum Charging Current | 200A |
| Maximum Discharging Current | 200A |
| Discharge Cut-off Voltage | 42V |
| Nominal Energy | 14.336KWh |
| Charging Temperature Range | 0~60℃ |
| Discharging Temperature Range | -20℃~65℃ |
| Communication Interface | RS485/CAN |
| Operating Humidity | <90%RH |
| Operating Altitude | ≤2000m |
| IP Rating | IP21 |
| Weight | 127kg |
| Dimensions (L×W×H) | 580×750×280mm |
