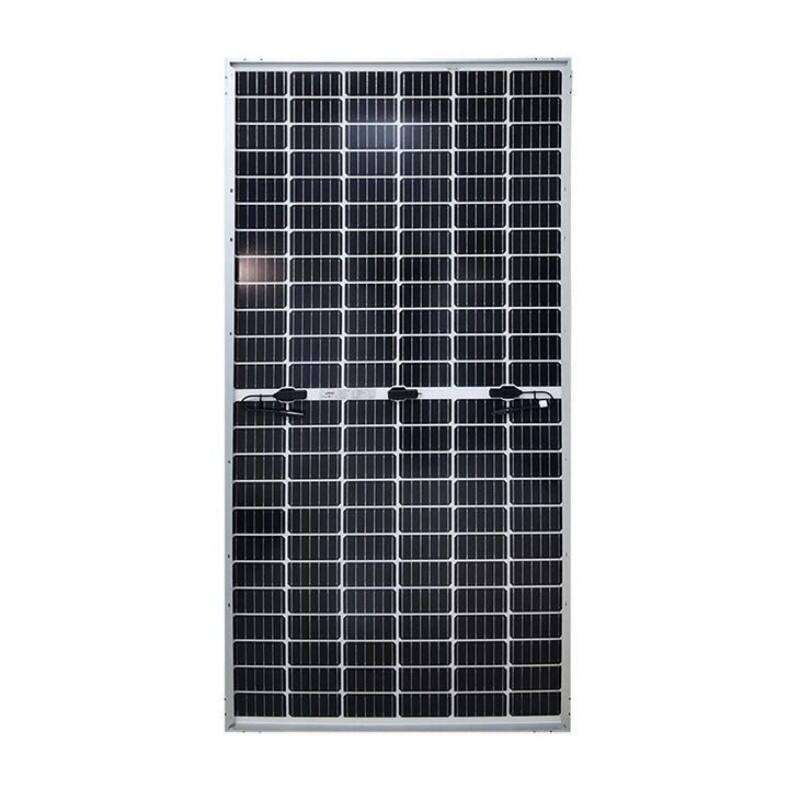

ORY455-72M-T6 P-Type Solar Panel: 455W High Power, 23% High Efficiency, 166mm Perc Cells. Silver, CE/TUV Certified, 25-Year Warranty for PV Systems.
Product Information
| Model | ORY455-72M-T6 |
| Rated Power | 455W |
| Dimension | 2094*1038*35mm |
| Weight | 23.5kg |
| No. Of Cells | 72 |
| Cell Type | 166mm Perc |
| Module Color | silver |
| Efficiency | 23% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Cell Orientation | 144 (6x24) | |||||
| Dimension | 2094x1038x35mm | |||||
| Weight | 23.5kg | |||||
| Glass | Single glass,3.2mm coated tempered glass | |||||
| Frame | Anodized aluminum alloy frame | |||||
| Junction Box | IP68,three diodes | |||||
| Output Cable | 4mm2,300mm in length,length can be customized | |||||
| Packaging | 30pcs/pallet,660pcs/40 HQ | |||||
| Maximum Power(Pmax) | 430w | 435w | 440w | 445w | 450w | 455w |
| Maximum Power Voltage(Vmp) | 40.7V | 40.9V | 41.1V | 41.5V | 41.7V | 38.20V |
| Maximum Power Current(Imp) | 10.57A | 10.64A | 10.71A | 10.78A | 10.85A | 10.92A |
| Open-circuit Voltage(Voc) | 48.50V | 48.70V | 48.90V | 49.10V | 49.30V | 49.50V |
| Short-circuit Current(lsc) | 11.31A | 11.39A | 11.46A | 11.53A | 11.60A | 11.66A |
| Module Efficiency(%) | 22.60% | 22.80% | 23.00% | |||
