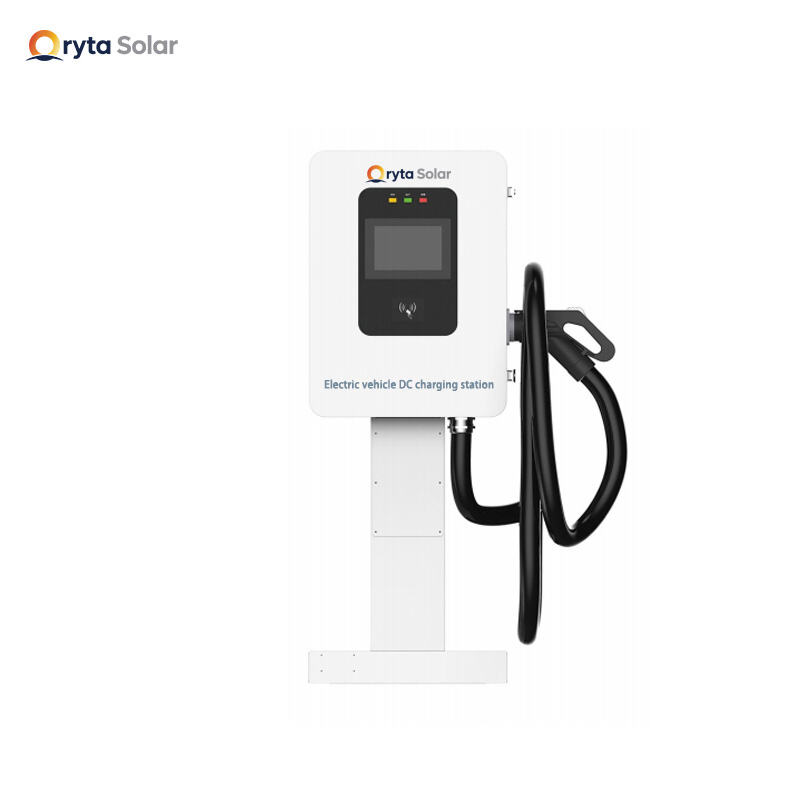

This 20/30kW DC electric vehicle charger features a single-port design, a 7-inch display, and supports RJ45/4G network connectivity. It boasts an IP54 protection rating, a 50,000-hour lifespan, and multiple safety features, meeting the charging needs of commercial electric vehicles.
Product Information
| Model | ORY-DCFC-20/30 |
| Input Voltage | 380Vac±20% |
| Frequency Range | 50Hz/60Hz |
| Output Voltage | 200-1000Vdc |
| Rated Current | 20/30Adc |
| Maximum Output Power | 20/30kW |
| Number of Interfaces | 1 |
Specifications
| Product Model | ORY-DCFC-20/30 |
| Input Voltage | 380Vac±20% |
| Frequency Range | 50Hz/60Hz |
| Output Voltage | 200-1000Vdc |
| Rated Current | 20/30Adc |
| Maximum Output Power | 20/30kW |
| Number of Interfaces | 1 |
| Charging Operation (Optional) | Card swiping/QR code scanning/POS machine/OCPP protocol |
| Networking Method | Standard RJ45 interface/4G |
| Display Screen | 7 inches |
| Dielectric Strength | ≥2000V |
| Protection Rating | IP54 |
| Noise Current | <75dB |
| Current regulation accuracy | ≤+1% |
| Voltage regulation accuracy | ≤±0.5% |
| Output current error | ≤+1% |
| Output voltage error | ≤±0.5% |
| Operating temperature | -20~50℃ |
| torage temperature | -20~70℃ |
| nterface type | GB/T20234.2-2015 Type C/CCS1/CCS2 |
| Metering method | Electricity meter measurement |
| Reliability | 50000h |
| Protection functions | Over/under voltage protection, short circuit protection, overload protection, leakage protection, and surge protection. |
| Installation method | floor-standing |
| Housing material | Sheet metal |
| Gun line length | 5m (customizable length) |
