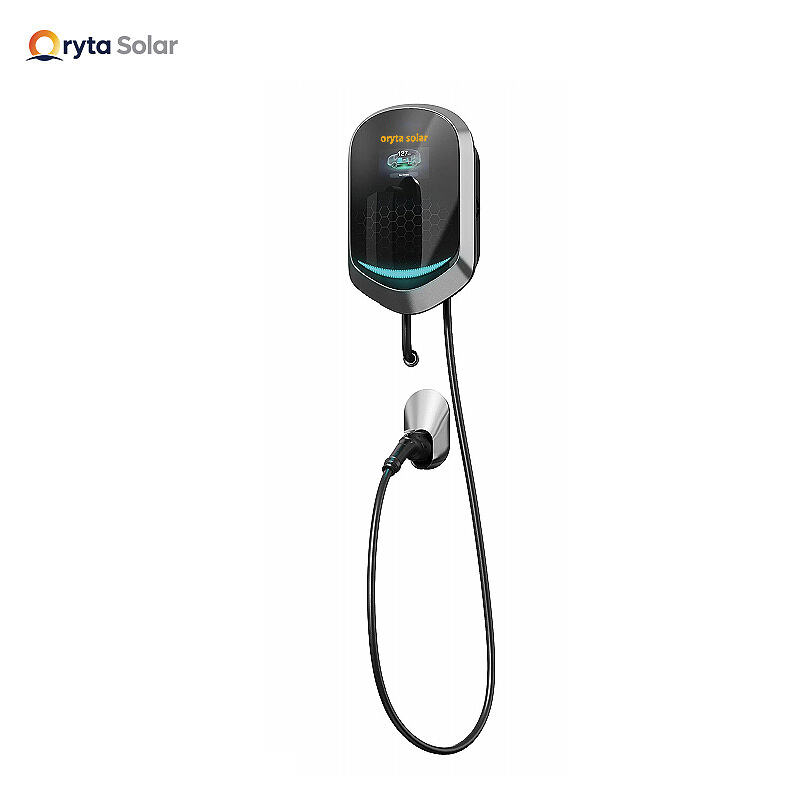

Oryta Solar’s 3.5kW/7kW AC charger supports card/scan payment, RJ45/4G connectivity, and offline/remote management. With IP54 protection and 50000h reliability, it’s ideal for residential & small commercial EV charging.
Product Information
| Model | ORY-ACFC-20/30 |
| Input Voltage | 380Vac±20% |
| Frequency Range | 50Hz/60Hz |
| Output Voltage | 380Vac±20% |
| Rated Current | 32Aac |
| Maximum Output Power | 22KW |
| Number of Interfaces | 1 |
Specifications
| Product Model | ORY-ACFC-20/30 |
| Input Voltage | 380Vac±20% |
| Frequency Range | 50Hz/60Hz |
| Output Voltage | 380Vac±20% |
| Rated Current | 32Adc |
| Maximum Output Power | 22KW |
| Number of Interfaces | 1 |
| Charging Operation (Optional) | Card swiping/QR code scanning/POS machine/OCPP protocol |
| Networking Method | Standard RJ45 interface/4G |
| Display Screen | 7 inches |
| Dielectric Strength | ≥2000V |
| Protection Rating | IP54 |
| Noise Current | <75dB |
| Current regulation accuracy | ≤+1% |
| Voltage regulation accuracy | ≤±0.5% |
| Output current error | ≤+1% |
| Output voltage error | ≤±0.5% |
| Operating temperature | -20~50℃ |
| torage temperature | -20~70℃ |
| nterface type | GB/T20234.2-2015 Type C/CCS1/CCS2 |
| Metering method | Electricity meter measurement |
| Reliability | 50000h |
| Protection functions | Over/under voltage protection, short circuit protection, overload protection, leakage protection, and surge protection. |
| Installation method | Column |
| Housing material | Sheet metal |
| Gun line length | 3.5m (customizable length) |
