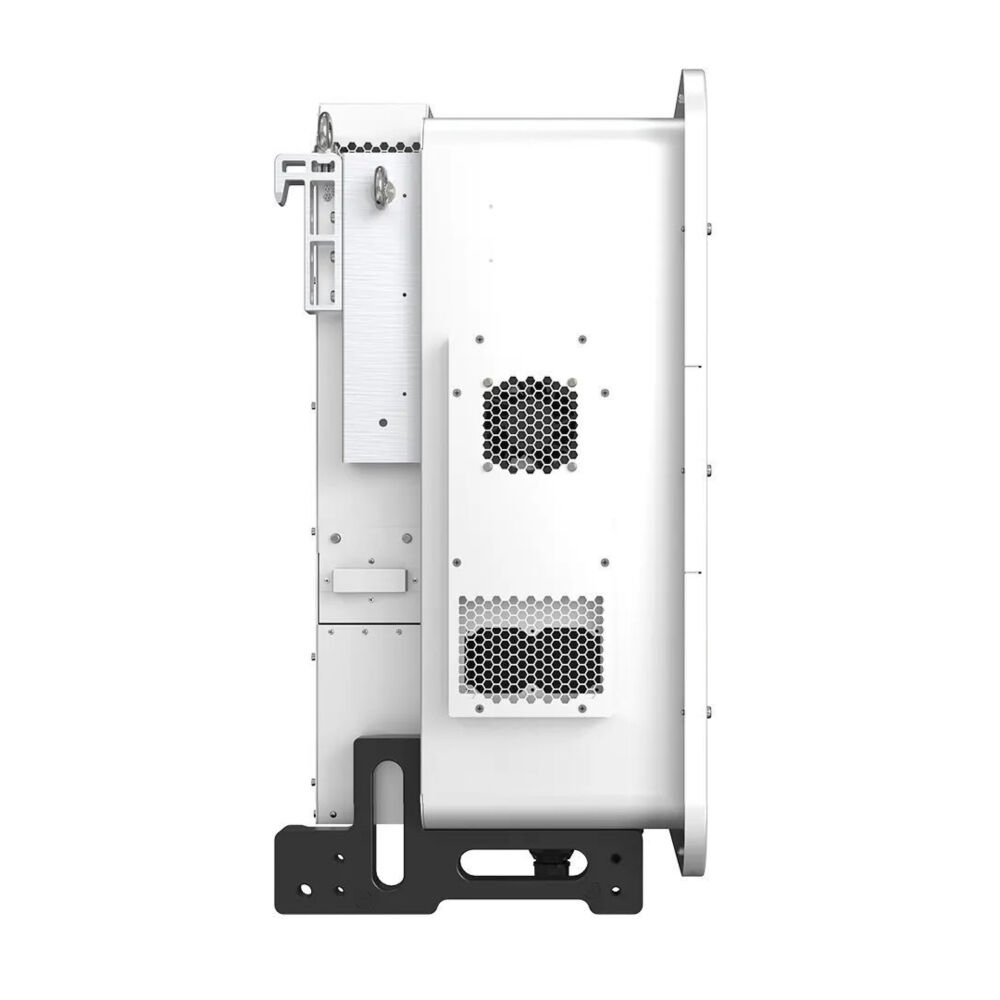

Solis S6-EH3P 125kW Three-Phase Energy Storage Inverter: 1000V photovoltaic input, 10 MPPT channels, dual battery interfaces, 6 units in parallel, 2x overload capacity, suitable for commercial grid-connected/off-grid systems.
Product Information
| Model | S6-EH3P(80-125)K10-NV-YD-H |
| Output Voltage | 220V/380V,230V/400V |
| Max Output Power | 125kW |
| PV Input Voltage | 1000V |
| Weight | 170 kg |
| Dimension | 174*814*400mm(W/H/D) |
| Warranty | 5 Years |
Specifications
| Datasheet | S6-EH3P(80-125)K10-NV-YD-H | ||
| Models | 80K | 100K | 125K |
| Input DC(PV side) | |||
| Recommended max. PV array size | 160kW | 200kW | 240kW |
| Max. usable PV input power | 160kW | 200kW | 240kW |
| Max. input voltage | 1000V | ||
| Rated voltage | 600V | ||
| Start-up voltage | 180V | ||
| MPPT voltage range | 150 - 950 V | ||
| Max. input current | 10 × 42 A | ||
| Max. short circuit current | 10 × 60 A | ||
| MPPT number / Max. input strings number | 10 / 20 | ||
| Battery | |||
| Battery type | Li-ion | ||
| Battery voltage range | 300 - 950 V | ||
| Max.charge / discharge current | 200 A / 100 A + 100 A | ||
| Number of battery ports | 2 | ||
| Max. charge / discharge current of each port | 100 A | ||
| Communication | CAN / RS485 | ||
| Output AC (Grid side) | |||
| Rated output power | 80kW | 100kW | 125kW |
| Max. apparent output power | 80kVA | 100kVA | 125kVA |
| Rated grid voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Rated grid output current | 152 A / 144.3 A | ||
| Power factor | >0.99 (0.8 leading – 0.8 lagging) | ||
| THDi | < 3% | ||
| Input AC (Grid side) | |||
| Max. input current | 250 A | ||
| Output AC (Back-up) | |||
| Rated output power | 80kW | 100kW | 125kW |
| Max. apparent output power | 1.2 times of rated power, 10 mins; 1.4 times of rated power, 100 s; 1.6 times of rated power, 10 s; 2 times of rated power, 200 ms | ||
| Back-up switch time | < 10 ms | ||
| Rated output voltage | 3/N/PE, 220 V / 380 V, 230 V / 400 V | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| THDv (@linear load) | < 2% | ||
| Efficiency | |||
| Max. efficiency | 97.6% | ||
| EU efficiency | 97.2% | ||
| BAT charged / discharged to AC max. efficiency | 97.0% | ||
| Protection | |||
| Anti-islanding protection | Yes | ||
| Output over current protection | Yes | ||
| Short circuit protection | Yes | ||
| Integrated DC switch | Yes | ||
| DC reverse-polarity protection | Yes | ||
| Surge protection | DC Type II / AC Type II | ||
| Integrated AFCI 2.0 | Optional | ||
| Protection class / Over voltage category | I / II | ||
| General Data | |||
| Max. allowable phase imbalance (grid & back-up) | 100% | ||
| Max. power per phase (grid & back-up) | 26.66 kW | 33.33 kW | 41.66 kW |
| Dimensions (W × H × D) | 1174 × 814 × 400 mm | ||
| Weight | 170 kg | ||
| Topology | Transformerless | ||
| Operating ambient temperature range | -25 ~ +60°C | ||
| Ingress protection | IP66 | ||
| Cooling concept | Intelligent fan-cooling | ||
| Max. operation altitude | 3000 m | ||
| Grid connection standard | VDE-AR-N 4105/VDE V 0124, EN 50549-1&2/EN 50549-10 | ||
| Safety / EMC standard | IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011 | ||
| Features | |||
| PV connection | MC4 Quick connection plug | ||
| Battery connection | Terminal connector | ||
| AC connection | Terminal block | ||
| Display | 7.0" LCD display & Bluetooth + APP | ||
| Communication | CAN, RS485-115200, Ethernet, Optional: Wi-Fi, Cellular, LAN | ||
