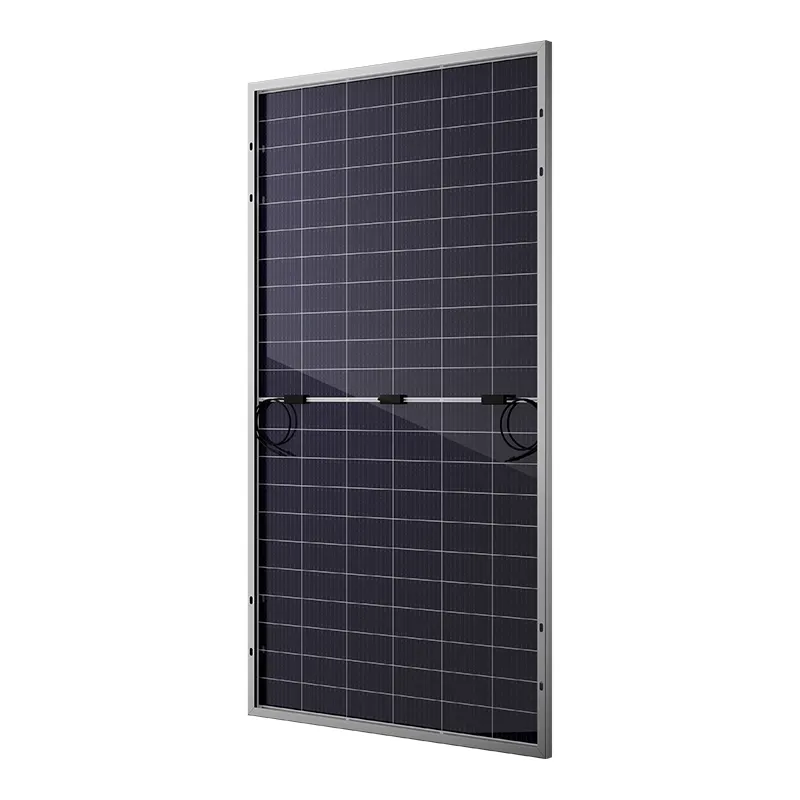

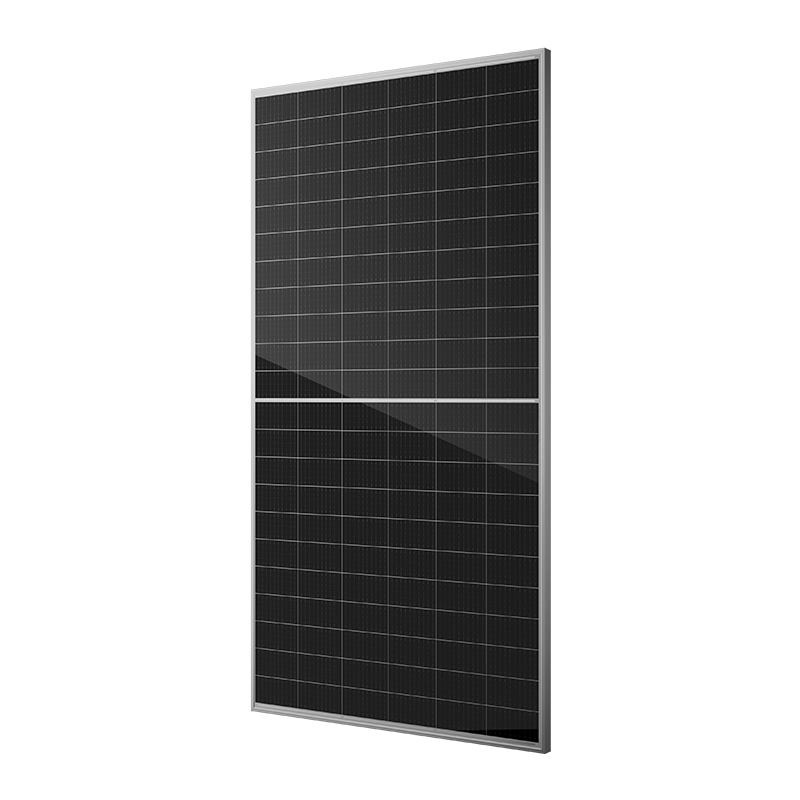

ORY680-700-66M-T12 N-TYPE solar panel: All-black aesthetic, 22.53% high efficiency. Dimensions 2384×1303×35mm, weight 33.6kg. CE/TUV certified, 15-year warranty, ideal for commercial & residential PV projects.
Product Information
| Model | ORY680-700-66M-T12 |
| Rated Power | 700W |
| Dimension | 2384x1303x35mm |
| Weight | 33.6kgs |
| No. Of Cells | 132 |
| Junction Box | IP68,three diiodes |
| Cell Type | N-TYPE |
| Efficiency | 22.53% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Cell Orientation | 132 cells | ||||
| Dimension | 2384x1303x35mm | ||||
| Weight | 33.6kg | ||||
| Glass | 3.2mm High Transmission,AR Coated HeatStrengthened Glass | ||||
| Frame | Anodized aluminum alloy frame | ||||
| Junction Box | IP68 three diodes | ||||
| Output Cable | 4mm*,280/280mm Length can be customized | ||||
| Packaging | 31pcs/pallet, 558pcs/40'HQ | ||||
| Maximum Power(Pmax) | 680W | 685W | 690W | 695W | 700W |
| Maximum Power Voltage(Vmp) | 38.60V | 38.80V | 39.00V | 39.20V | 39.40V |
| Maximum Power Current(Imp) | 17.63A | 17.67A | 17.71A | 17.75A | 17.79A |
| Open-circuit Voltage(Voc) | 46.50V | 46.70V | 46.90V | 47.10V | 47.30V |
| Short-circuit Current(Isc) | 18.72A | 18.77A | 18.82A | 18.87A | 18.92A |
| Module Efficiency(%) | 21.89% | 22.05% | 22.21% | 22.37% | 22.53% |
