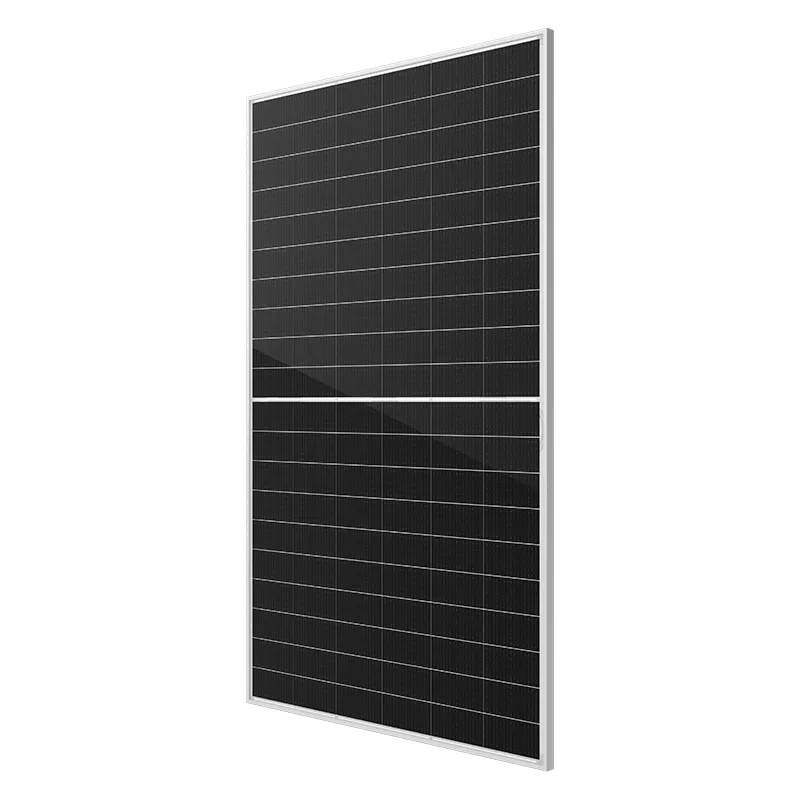

ORY630-72M-T12N solar panel: 630W rated power, 23.32% efficiency. 132-cell, dual 2.0mm strengthened glass. IP68 junction box, CE/TUV certified. 25-year warranty, ideal for residential & commercial PV systems.
Product Information
| Model | ORY630-72M-T12N |
| Rated Power | 630W |
| Dimension | 2382x1134x30mm |
| Weight | Front Glass:2.Omm high transmission,AR coated heat strengthened glass |
| Back Glass:2.0mm heat strengthened glass | |
| No. Of Cells | 132 |
| Junction Box | IP68,three diiodes |
| Module Color | silver |
| Efficiency | 23.32% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Mechanical Characteristics | |||||||
| Cell Orientation | 132 cells | ||||||
| Dimension | 2382×1134×30mm | ||||||
| Weight | 33.7Kg | ||||||
| Glass | Front Glass:2.0mm high transmission,AR coated heat strengthened glass | ||||||

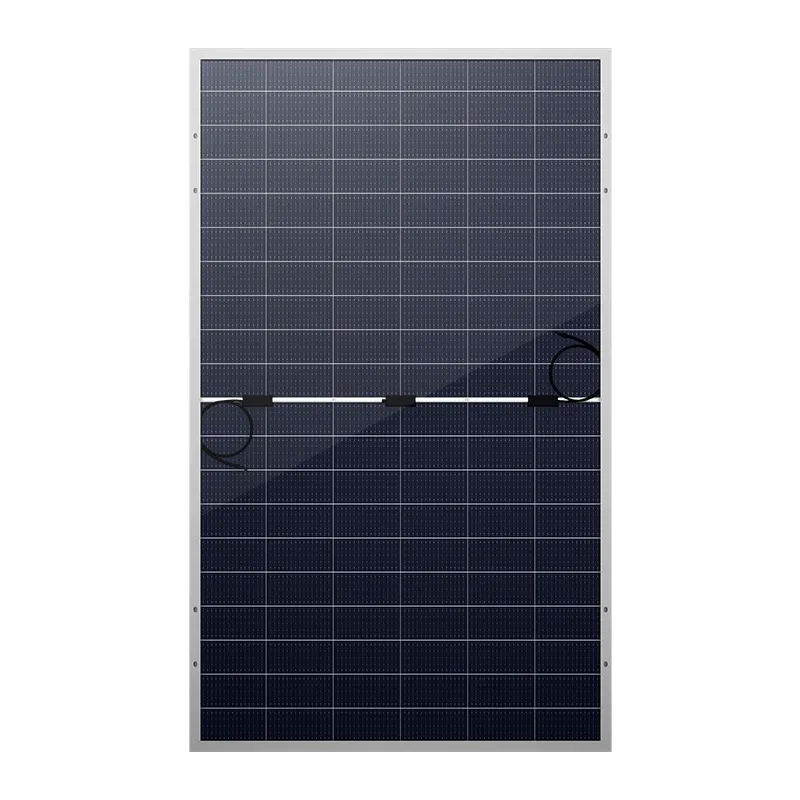

| Back Glass:2.0mm heat strengthened glass | |||||||
| Frame | Anodized aluminum alloy frame | ||||||
| Junction Box | IP68,three diiodes | ||||||
| Output Cable | 4mm², portrait 350/280mm,length can be customized | ||||||
| Packaging | 36pcs/pallet,720pcs/40HQ | ||||||
| Electrical Data (STC) | |||||||
| STC | STC | STC | STC | STC | STC | STC | |
| Maximum Power (Pmax) | 600W | 605W | 610W | 615W | 620W | 625W | 630W |
| Maximum Power Voltage (Vmp) | 40.30V | 40.50V | 40.80V | 41.10V | 41.40V | 41.70V | 42.00V |
| Maximum Power Current (Imp) | 14.91A | 14.94A | 14.96A | 14.98A | 14.99A | 15.01A | 15.03A |
| Open-circuit Voltage (Voc) | 48.40V | 48.70V | 49.00V | 49.30V | 49.60V | 49.90V | 50.20V |
| Short-circuit Current (Isc) | 15.80A | 15.83A | 15.86A | 15.89A | 15.91A | 15.93A | 15.95A |
| Module Efficiency (%) | 22.20% | 22.40% | 22.60% | 22.80% | 23.00%% | 23.13% | 23.32% |
