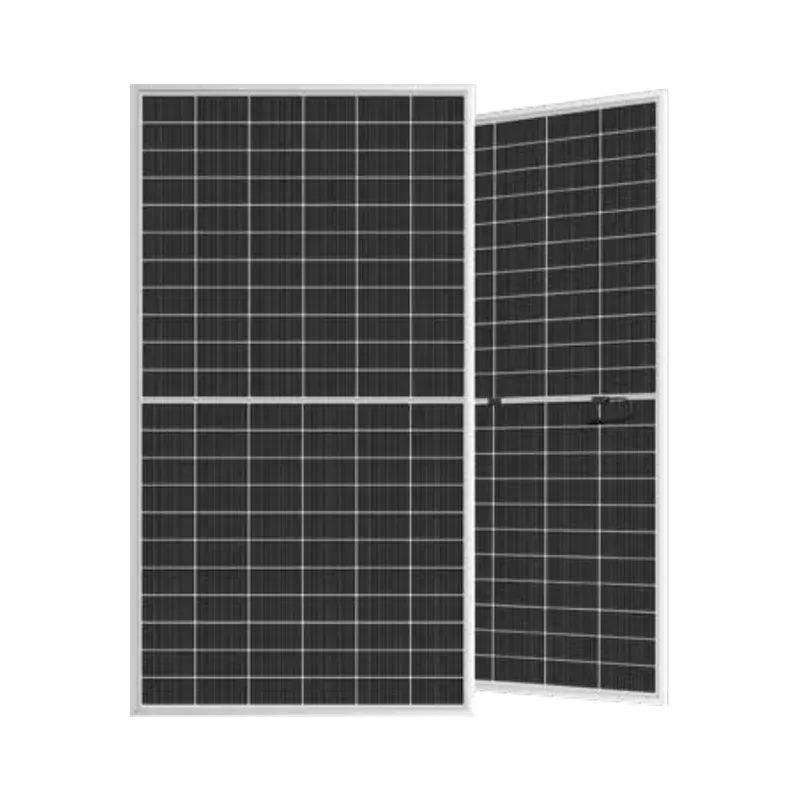

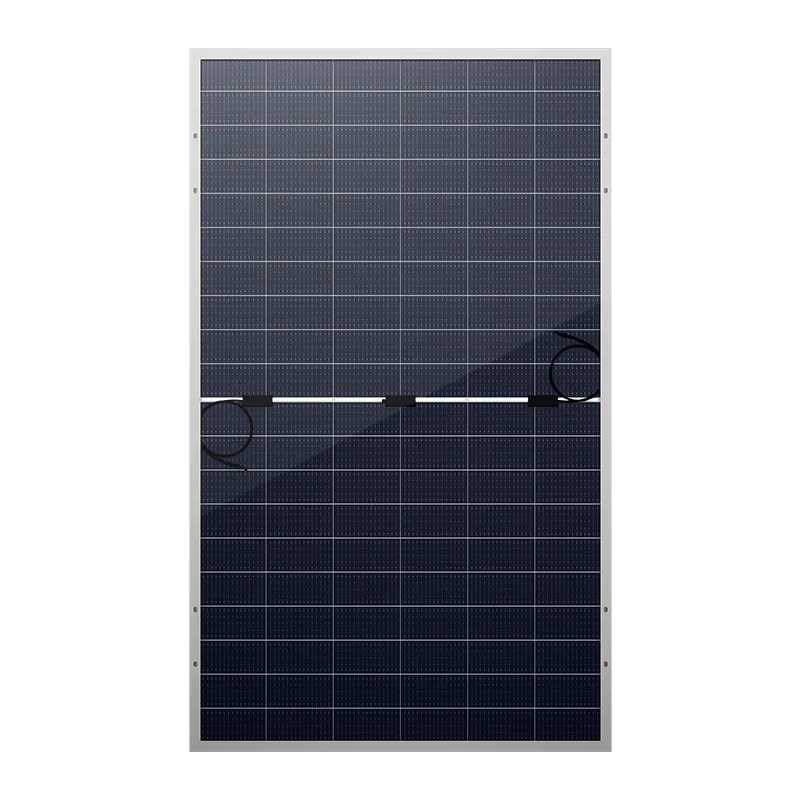

ORY650-72M-T12NS TOPCon N-type solar panel: 650W power, 23.34% high efficiency. 132-cell, dual 2.0mm AR glass. IP68, CE/TUV certified,, 25-year warranty.
Product Information
| Model | ORY650-72M-T12NS |
| Rated Power | 650W |
| Dimension | 2382x1134x30mm |
| Glass | Front Glass:2.0mm high transmission,AR coated heat strengthened glass |
| Back Glass:2.0mm heat strengthened glass | |
| No. Of Cells | 132 |
| Junction Box | IP68,three diiodes |
| Module Color | silver |
| Efficiency | 23.34% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Mechanical Characteristics | |||||
| Cell Type | N-Type Mono crystalline | ||||
| No.of Cells | 132cells | ||||
| Dimensions | 2382x1134x30mm | ||||
| Weight | 32.5Kg | ||||
| Glass | 2.0mm,High Transmission,AR Coated Heat Strengthened Glass; 2.0mm,Heat Strengthened Glass. | ||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction Box | IP68 Reatd,3 diodes | ||||
| Output Cable | 4.0mm², Portrait:350/280mm,Length can be customized | ||||
| Operating Temperature | ~40℃+85℃ | ||||
| Maximum system voltage | 1500V DC (IEC/UL) | ||||
| Maximum series Fuse Rating | 35A | ||||
| Power Tolerance | 0~5W | ||||
| Temperature Coefficients of Pmax | ~0.29%/℃ | ||||
| Temperature Coefficients of Voc | ~0.24%/℃ | ||||
| Temperature Coefficients of Isc | 0.040%/℃ | ||||
| Module Type | ORY630 | ORY635 | ORY640 | ORY645 | ORY650 |
| STC | STC | STC | STC | STC | |
| Maximum Power(Pmax) | 630Wp | 635Wp | 640Wp | 645Wp | 650Wp |
| Maximum Power Voltage(Vmp) | 40.30V | 40.50V | 40.70V | 40.90V | 41.10V |
| Maximum Power Current(Imp) | 17.25A | 17.29A | 17.33A | 17.36A | 17.40A |
| Open-circuit Voltage(Voc) | 48.30V | 48.60V | 48.80V | 49.00V | 49.20V |
| Short-circuit Voltage(lsc) | 18.28A | 18.32A | 18.36A | 18.40A | 18.44A |
| Module Efficiency(%) | 22.73% | 22.86% | 23.14% | 23.26% | 23.34% |
