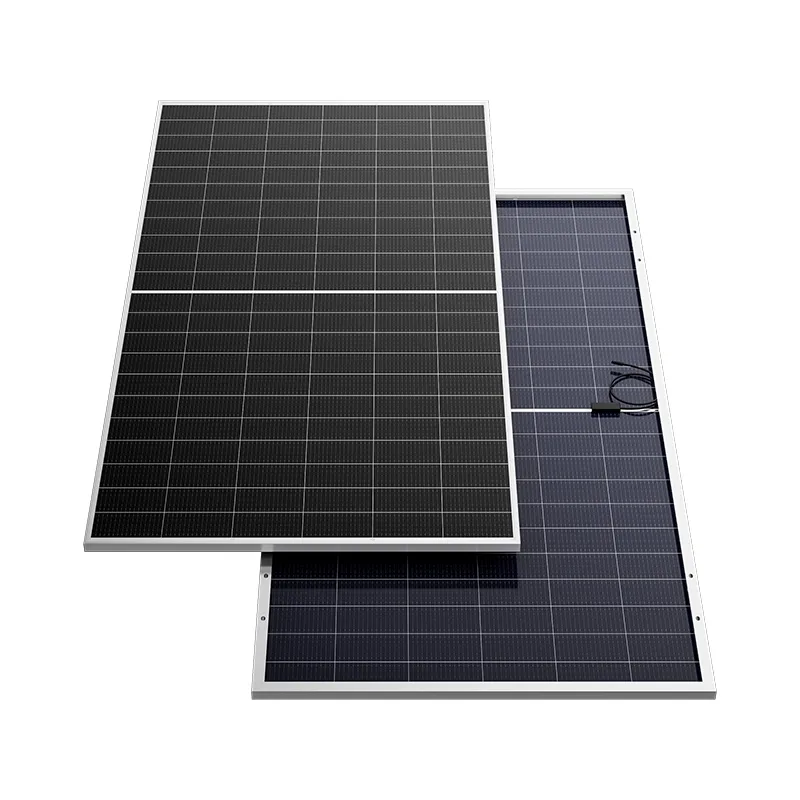

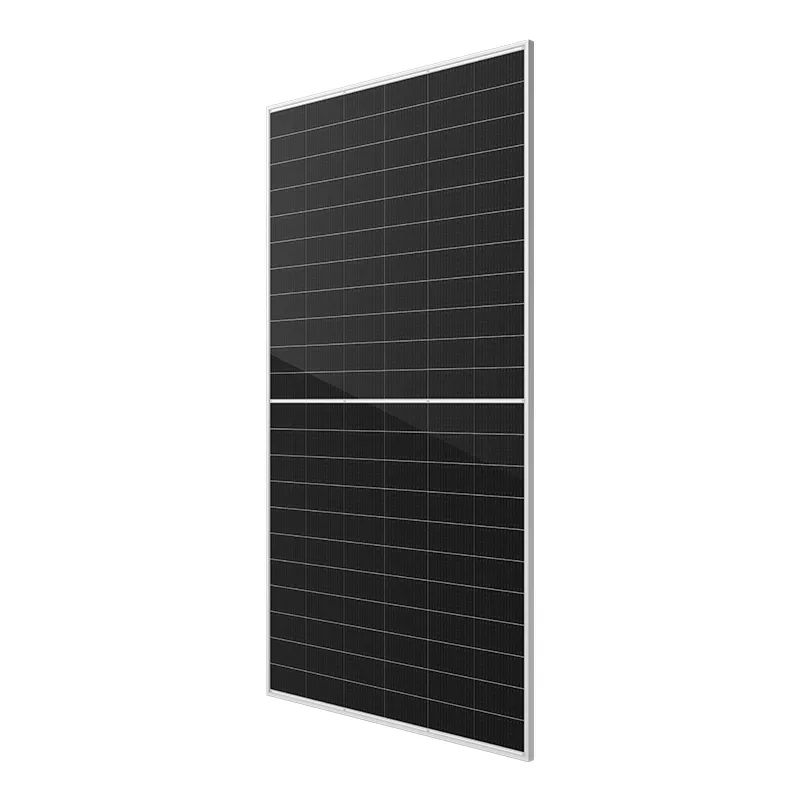

132-cell N-type mono solar module (2384*1103*33mm, 38.3kg) with 23.2% high efficiency, CE/TUV approved, 15-year warranty for commercial & residential use
Product Information
| Model | ORY700-720-66M-T12 |
| Rated Power | 700W |
| Dimension | 2384x1303x35mm |
| Weight | 38.6kgs |
| No. Of Cells | 132 |
| Junction Box | IP68,three diiodes |
| Cell Type | N-TYPE |
| Efficiency | 23.2 |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Mechanical Characteristics | ||||||
| Cell Type | N-Type Mono crystalline | |||||
| No.of Cells | 132cells | |||||
| Dimensions | 2384*1303*33mm | |||||
| Weight | 38.3Kg | |||||
| Glass | 2.0mm,High Transmission,AR Coated Heat Strengthened Glass; 2.0mm,Heat Strengthened Glass. | |||||
| Frame | Anodized Aluminium Alloy | |||||
| Junction Box | iP68 Reatd,5 diodes | |||||
| Output Cable | 4.0mm², Portrait:350/280mm,Length can be customized | |||||
| Operating Temperature | −40°C~+85°C | |||||
| Maximum system voltage | 1500V DC (IEC/UL) | |||||
| Maximum series Fuse Rating | 35A | |||||
| Power Tolerance | 0–5W | |||||
| Temperature Coefficients of Pmax | −0.29%/°C | |||||
| Temperature Coefficients of Voc | −0.24%/°C | |||||
| Temperature Coefficients of Isc | 0.040%/°C | |||||
| Module Type | ORY695 | ORY700 | ORY705 | ORY710 | ORY715 | ORY720 |
| STC | STC | STC | STC | STC | STC | |
| Maximum Power(Pmax) | 695Wp | 700Wp | 705Wp | 710Wp | 715Wp | 720Wp |
| Maximum Power Voltage(Vmp) | 40.30V | 40.50V | 40.70V | 40.90V | 41.10V | 41.30V |
| Maximum Power Current(Imp) | 17.25A | 17.29A | 17.33A | 17.36A | 17.40A | 17.44A |
| Open-circuit Voltage(Voc) | 48.30V | 48.60V | 48.80V | 49.00V | 49.20V | 49.40V |
| Short-circuit Voltage(lsc) | 18.28A | 18.32A | 18.36A | 18.40A | 18.44A | 18.49A |
| Module Efficiency(%) | 22.40% | 22.50% | 22.70% | 22.90% | 23.00% | 23.20% |
