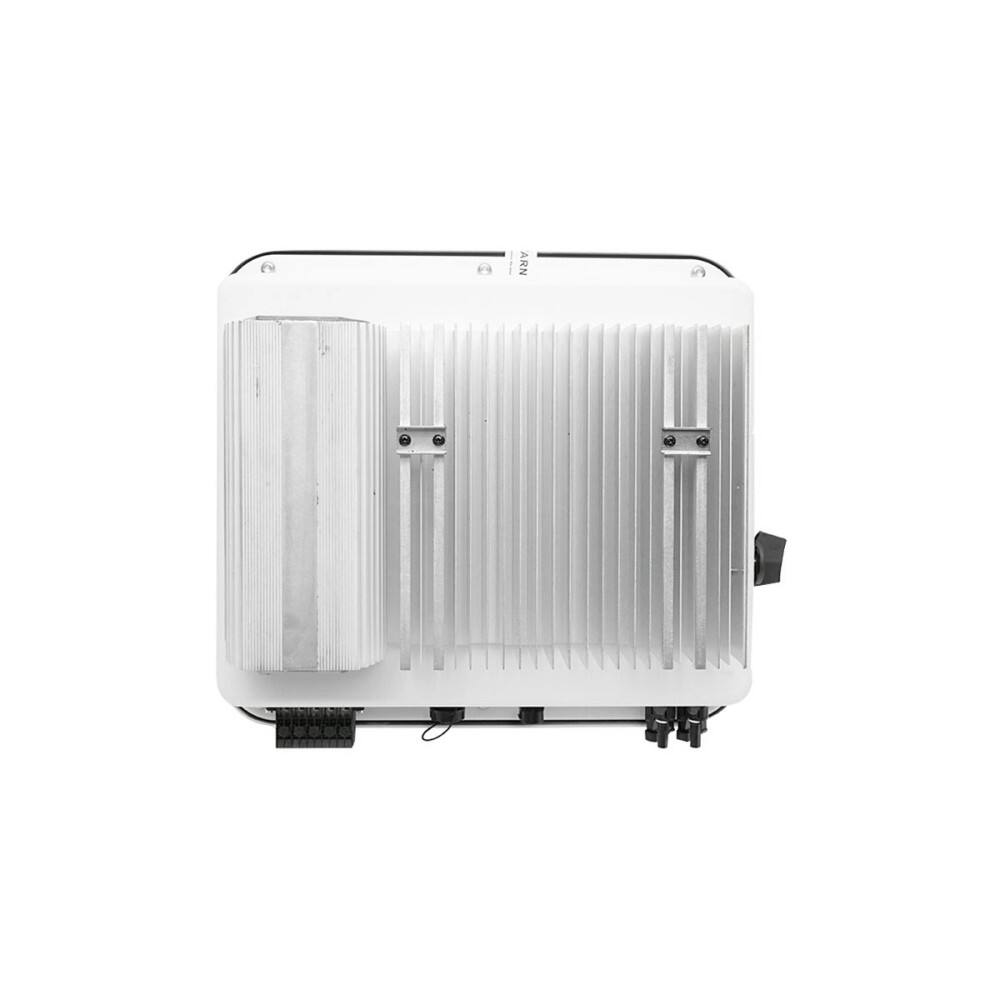

Growatt MOD 10KTL3-X 11kVA 3-phase inverter: 1100V PV input, 400Vac output, OLED+LED, Wi-Fi/APP, 14kg, 5-year warranty, multiple global certifications.
Product Information
| Model | Growatt MOD 10KTL3-X |
| Output Voltage | 400Vac 3Phases 50Hz |
| Max Output Power | 11000VA |
| PV Input Voltage | 1100V |
| Weight | 14kg |
| Dimension | 425*387*178mm(L/W/H) |
| Display | OLED+LEDWIFI+APP |
| Certification | CE,VDE0126,EN50549,IEC62116,IEC61727, IEC 60068,IEC 61683,G98/G99,G100,AS4777 |
| Warranty | 5 Years |
Specifications
| Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X |
| Input data ( DC ) | |||||
| Max. recommended PV power( for module STC ) | 15000W | 16500W | 18000W | 19500W | 22500W |
| Max DC voltage | 1100V | ||||
| Start Voltage | 160V | ||||
| Nominal voltage | 580V | ||||
| MPPT voltage range | 140V-1000V | ||||
| No. of Mpp trackers | 2 | ||||
| No. of PV strings per MPP tracker | 1 | 1 | 1/2 | 1/2 | 1/2 |
| Max input current per MPPT tracker | 12A | 13A | 13/26A | 13/26A | 13/26A |
| Max. short circuit current per MPPT | 16A | 16A | 16/32A | 16/32A | 16/32A |
| Output data ( AC ) | |||||
| Ac nominal power | 110000W | 11000W | 12000W | 13000W | 15000W |
| Max. AC apparent power | 11000VA* | 12100VA* | 13200VA* | 14300VA* | 16500VA* |
| Nominal AC voltage(range*) | 220V/380V,230V/400V(340-440V) | ||||
| AC grid frequency (range*) | 50/60Hz(45-55Hz/55-65Hz | ||||
| Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A |
| Adjustable power factor | 0.8leading...0.8lagging | ||||
| THDi | <3% | ||||
| AC grid connection type | 3W+N+PE | ||||
| Efficiency | |||||
| MAX efficiency | 98.6% | ||||
| European efficiency | 99.7% | 98.1% | 98.2% | 98.2% | 98.2% |
| MPPT efficiency | 99.9% | ||||
| Protection devices | |||||
| DC reverse polarity protection | Yes | ||||
| DC Switch | Yes | ||||
| AC/DC surae protection | Typell/Type II | ||||
| Insulation resistance monitoring | Yes | ||||
| AC short-circuit protection | Yes | ||||
| Ground fault monitoring | Yes | ||||
| Grid monitoring | Yes | ||||
| Anti-islanding protection | Yes | ||||
| Residual-current monitoring unit | Yes | ||||
| Strong fault monitoring | Yes | ||||
| AFC protection | Optional | ||||
| General data | |||||
| Dimensions (W/H/D) | 425/387/178mm | ||||
| Weigint | 14kg | 14kg | 16kg | 16kg | 16kg |
| Operating temperature range | −25℃ | ||||
| Nighttime power consumpion | <1W | ||||
| Topology | Transhomeless | ||||
| Cooling | Natural convection | ||||
| Protection dearee | IP66 | ||||
| Relative humidity | 0-100% | ||||
| Altitude | 4000m | ||||
| DC connection | H4/MC4(Optional) | ||||
| AC connection | Connector | ||||
| Display | OLED+LED/WiFi+APP | ||||
| Interfaces:USB/RS485/WiFi/GPRS/LAN/RF | yes/yes/Optional/Optional/Optional/Optional | ||||
| Warranty 5/10 years | Yes/Optional | ||||
