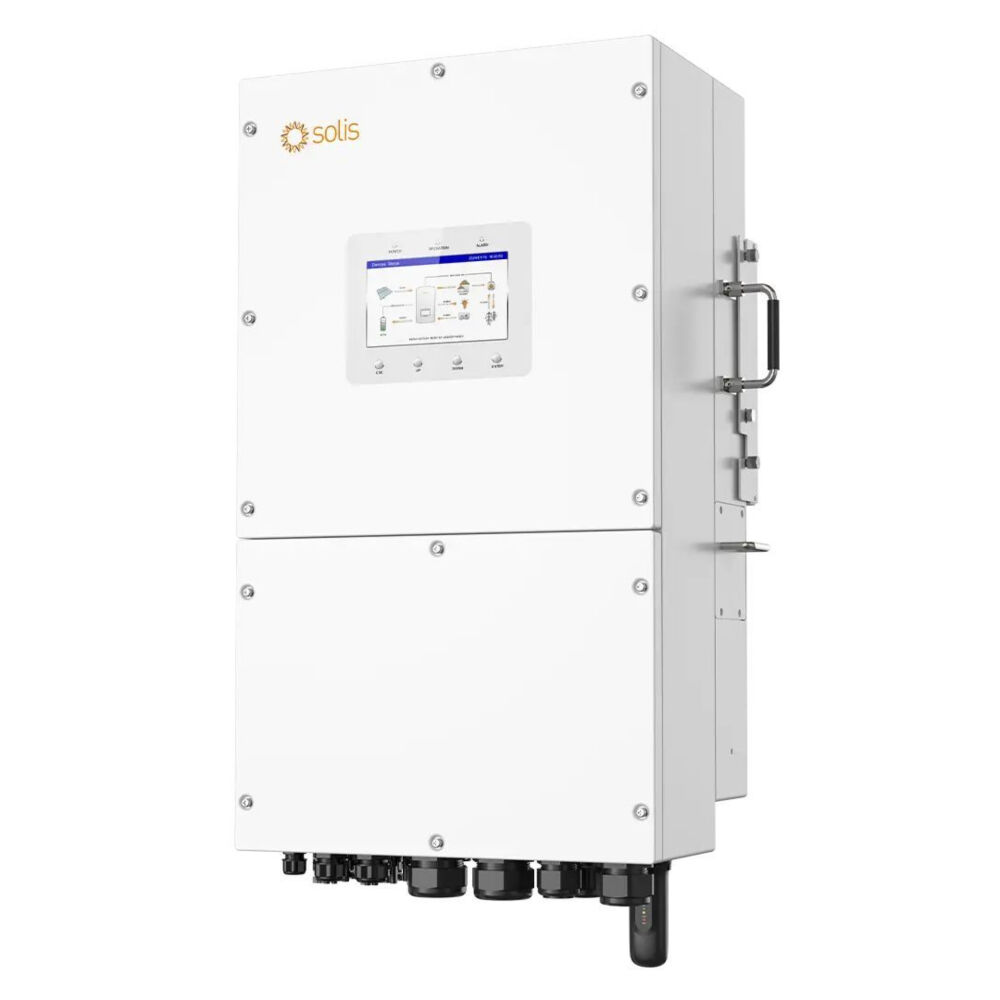

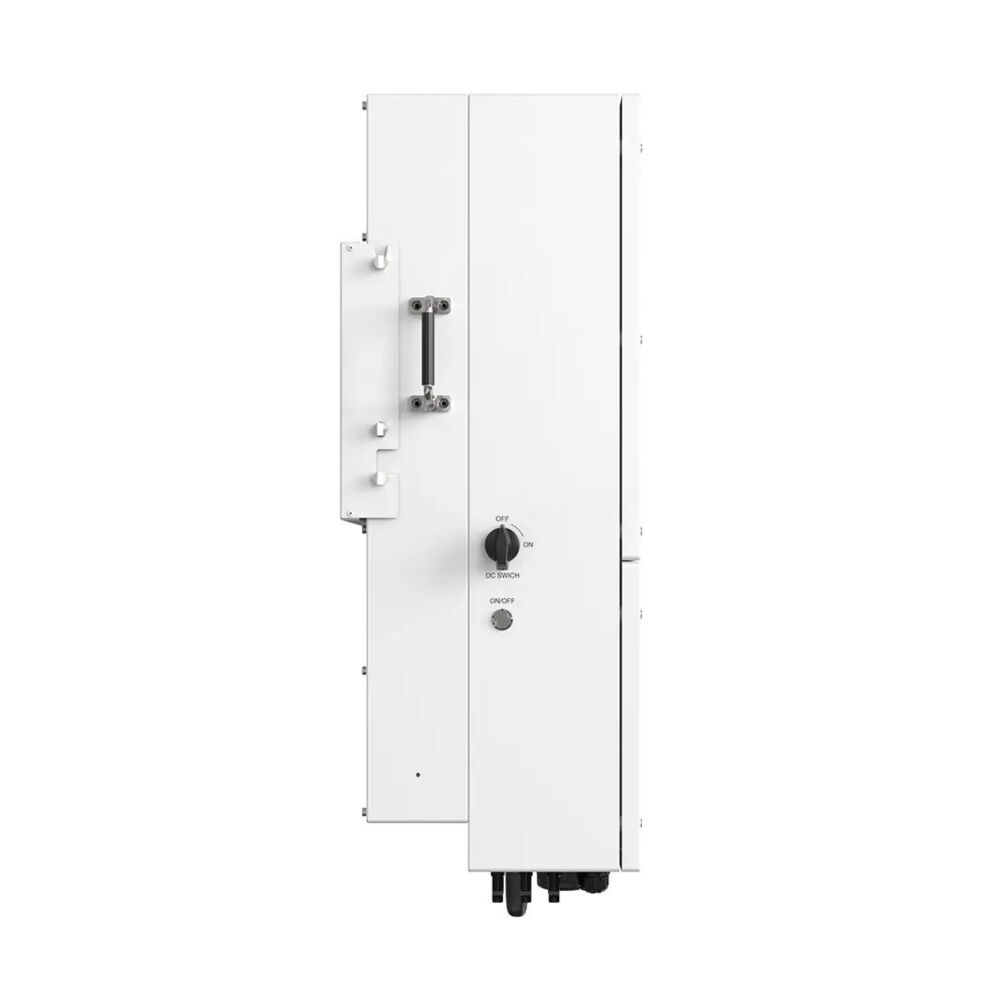

Premium S6-EH1P series 16kW inverter for solar systems. 220V/230V output, 550V PV input, 7-inch LCD, compact size & reliable performance for commercial use.
Product Information
| Model | S6-EH1P(12-16)K03-NV |
| Output Voltage | 220V/230V |
| Max Output Power | 16kw |
| PV Input Voltage | 550V |
| Battery Voltage | 40-60V |
| Weight | 55.5kg |
| Dimension | 459x845x313mm(W/H/D) |
| Display | OLED+LED/WIFI+APP |
| Certification | CE,VDE0126,EN50549,IEC62116,IEC61727,IEC 60068, IEC 61683,G98/G99,G100,AS4777 |
| Warranty | 5 Years(10 Years Optional) |
Specifications
| DATASHEET | S6-EH1P(12-16)K03-NV-YD-L | ||
| Models | 12K | 14K | 16K |
| Input DC (PV side) | |||
| Recommended max. PV array size | 24 kW | 28 kW | 32 kW |
| Max. usable PV input power | 19.2 kW | 22.4 kW | 22.4 kW |
| Max. input voltage | 550 V | ||
| Rated voltage | 380 V | ||
| Start-up voltage | 100 V | ||
| MPPT voltage range | 100 – 450 V | ||
| Max. input current | 40 A / 40 A / 40 A | ||
| Max. short circuit current | 50 A / 50 A / 50 A | ||
| MPPT number / Max. input strings number | 3 / 6 | ||
| Battery | |||
| Battery type | Li-ion / Lead-acid | ||
| Battery voltage range | 40 – 60 V | ||
| Max. charge / discharge current | 250 A | 290 A | 290 A |
| Communication | CAN / RS485 | ||
| Output AC (Grid side) | |||
| Rated output power | 12 kW | 14 kW | 16 kW |
| Operation phase | L/N/PE | ||
| Rated grid voltage | 220 V / 230 V | ||
| Rated grid frequency | 50 Hz / 60 Hz | ||
| Rated grid output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | ||
| THDi | < 3% | ||
| Input AC (Grid side) | |||
| Input voltage range | 187 – 253 V | ||
| Max. input current | 81.8 A / 78.3 A | 95.5 A / 91.3 A | 109.1 A / 104.3 A |
| Frequency range | 45 – 55 Hz / 55 – 65 Hz | ||
| Output AC (Back-up) | |||
| Rated output power | 12 kW | 14 kW | 16 kW |
| Max. apparent output power | 2 times of rated power, 10 s | ||
| Back-up switch time | < 4 ms | ||
| Rated output voltage | L/N/PE, 220 V / 230 V | ||
| Rated frequency | 50 Hz / 60 Hz | ||
| Rated output current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| THDv (@linear load) | < 3% | ||
| Input Generator | |||
| Max. input power | 12 kW | 14 kW | 16 kW |
| Max. input current | 54.5 A / 52.2 A | 63.6 A / 60.9 A | 72.7 A / 69.6 A |
| Rated input frequency | 50 Hz / 60 Hz | ||
| Efficiency | |||
| Max. efficiency | 97.6% | ||
| EU efficiency | 97.0% | ||
| BAT charged by PV max. efficiency | > 94.9% | ||
| BAT charged / discharged to AC max. efficiency | > 94.33% / 93.51% | ||
| Protection | |||
| Surge protection | Yes | ||
| DC reverse-polarity protection | Yes (PV only) | ||
| Ground fault monitoring | Yes | ||
| Integrated AFCI | Yes | ||
| Protection class / Over voltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) | ||
| General Data | |||
| Dimensions (W × H × D) | 459 × 845 × 313 mm | ||
| Weight | 55.5 kg | ||
| Topology | Transformerless | ||
| Operating ambient temperature range | -25 ~ +60°C | ||
| Ingress protection | IP66 | ||
| Noise emission (typical) | < 65 dB(A) | ||
| Cooling concept | Intelligent fan-cooling | ||
| Max. operation altitude | 4000 m | ||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, EN50549-1 | ||
| Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||
| Features | |||

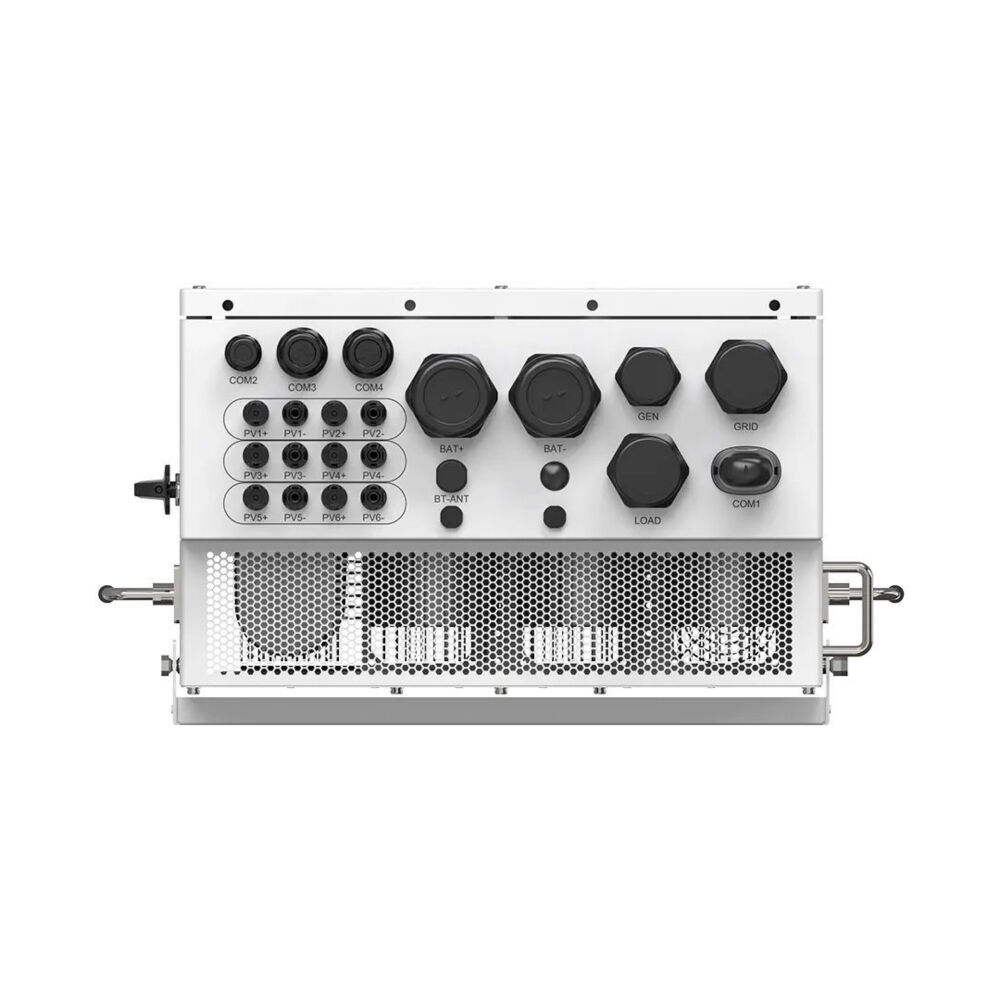

| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||
| AC connection | Terminal Block | ||
| Display | 7.0" LCD display & Bluetooth + APP | ||
| Communication | RS485, Optional: Cellular, Wi-Fi, LAN | ||
