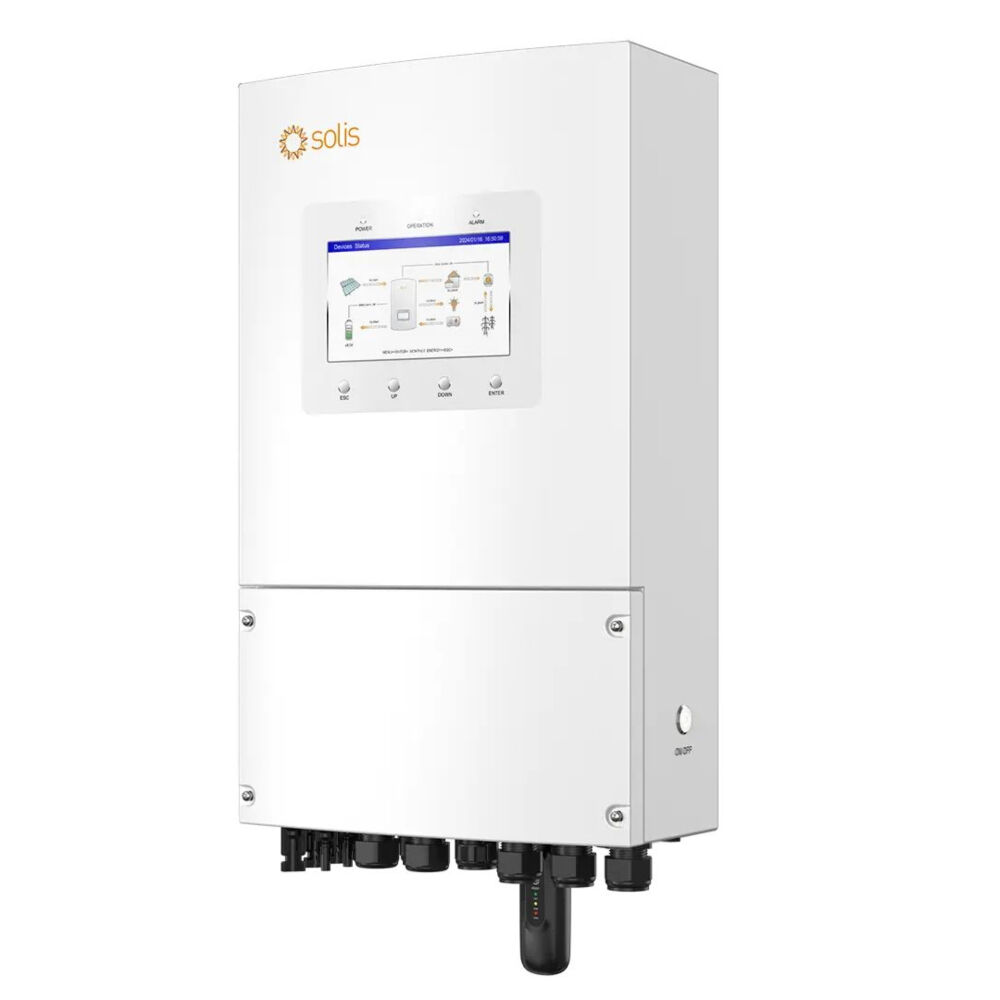

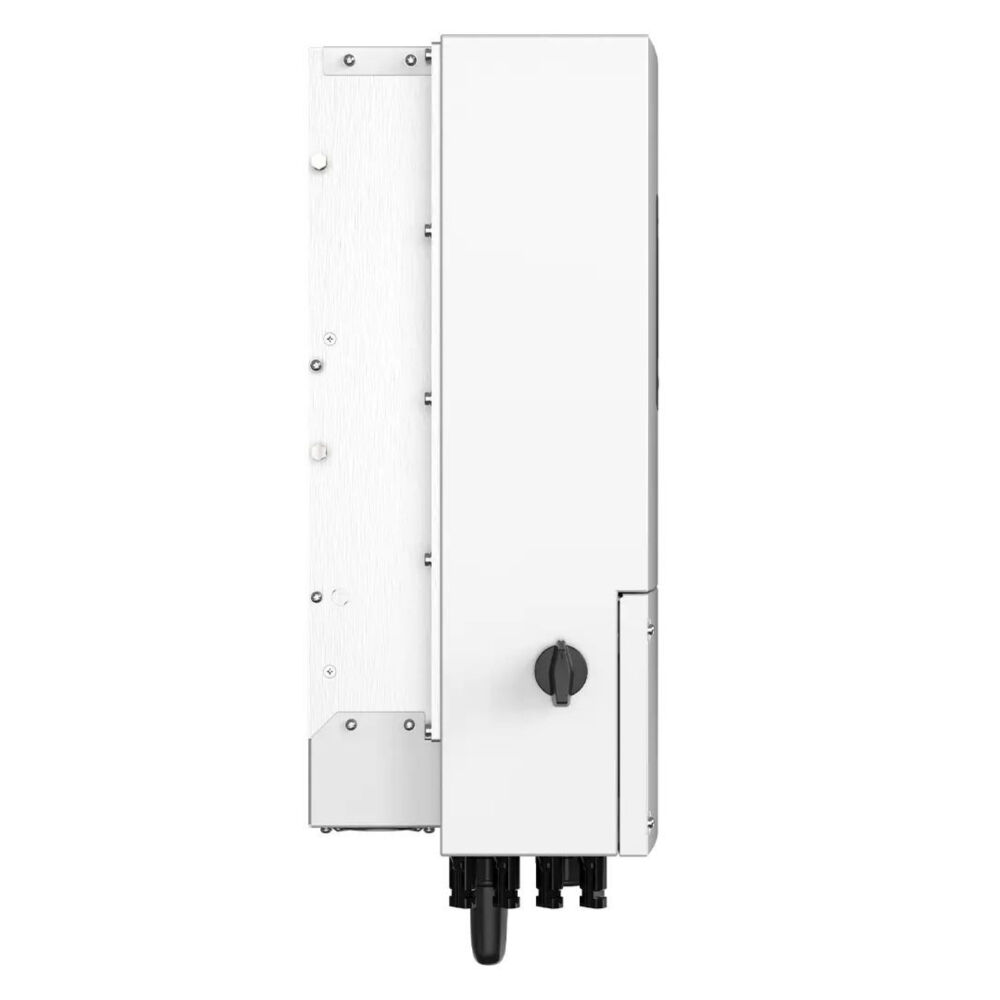

8KVA solar inverter with 220V/230V output, 500V PV input & 40-60V battery voltage. 7-inch display, 23kg weight, 335×560×253mm dimension.
Product Information
| Model | S6-EH1P(12-16)K03-NV |
| Output Voltage | 220V/230V |
| Max Output Power | 8 kVA |
| PV Input Voltage | 500V |
| Battery Voltage | 40-60V |
| Weight | 23kg |
| Dimension | 335x560x253 mm(W/H/D) |
| Display | 7 |
| Certification | CE,VDE0126,EN50549,IEC62116,IEC61727,IEC 60068, IEC 61683,G98/G99,G100,AS4777 |
| Warranty | 5 Years(10 Years Optional) |
Specifications
| Output AC (Grid side) | |||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
| Max. apparent output power | 3 kVA | 3.6 kVA | 5 kVA | 6 kVA | 8 kVA |
| Operation phase | L/N/PE | ||||
| Rated grid voltage | 220 V/230 V | ||||
| Rated grid frequency | 50 Hz / 60 Hz | ||||
| Rated grid output current | 13.7 A/13.1 A | 16.4 A/15.7 A | 22.8 A/21.8 A | 27.3 A/26.1 A | 36.4 A/34.8 A |
| Max. output current | 13.7 A/13.1 A | 16.4 A/15.7 A | 22.8 A/21.8 A | 27.3 A/26.1 A | 36.4 A/34.8 A |
| Power factor | > 0.99 (0.8 leading – 0.8 lagging) | ||||
| THDi | < 2% | ||||
| Input AC (Grid side) | |||||
| Input voltage range | 187 – 253 V | ||||
| Max. input current | 21 A | 25 A | 32 A | 40 A | 50 A |
| Frequency range | 45 – 55 Hz / 55 – 65 Hz | ||||
| Output AC (Back-up) | |||||
| Rated output power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
| Max. apparent output power | 2 times of rated power, 10 s | ||||
| Back-up switch time | < 4 ms | ||||
| Rated output voltage | L/N/PE, 220 V / 230 V | ||||
| Rated frequency | 50 Hz / 60 Hz | ||||
| Rated output current | 13.7 A/13.1 A | 16.4 A/15.7 A | 22.8 A/21.8 A | 27.3 A/26.1 A | 36.4 A/34.8 A |
| Max. AC passthrough current | 35 A | 35 A | 40 A | 40 A | 50 A |
| THDv (@linear load) | < 2% | ||||
| Input Generator | |||||
| Max. input power | 3 kW | 3.6 kW | 5 kW | 6 kW | 8 kW |
| Max. input current | 13.7 A/13.1 A | 16.4 A/15.7 A | 22.8 A/21.8 A | 27.3 A/26.1 A | 36.4 A/34.8 A |
| Rated input frequency | 50 Hz/60 Hz | ||||
| Efficiency | |||||
| Max. efficiency | 96.2% | ||||
| EU efficiency | 96.1% | ||||
| BAT charged by PV/ AC max. efficiency | 95.3%/93.9% | ||||
| BAT discharged to AC max. efficiency | 93.8% | ||||
| Protection | |||||
| Ground fault monitoring | Yes | ||||
| DC reverse-polarity protection | Yes | ||||
| Integrated AFCI 2.0 | Optional | ||||
| Protection class / Over voltage category | I I / II (PV and BAT), III (MAINS and BACKUP and GEN) | ||||
| General Data | |||||
| Dimensions (W × H × D) | 335 × 560 × 253 mm | ||||
| Weight | 23 kg | 23.5 kg | |||
| Topology | High frequency isolation (for battery) | ||||
| Operating ambient temperature range | -40 ~ + 60°C | ||||
| Ingress protection | IP66 | ||||
| Noise emission (typical) | < 65 dB(A) | ||||

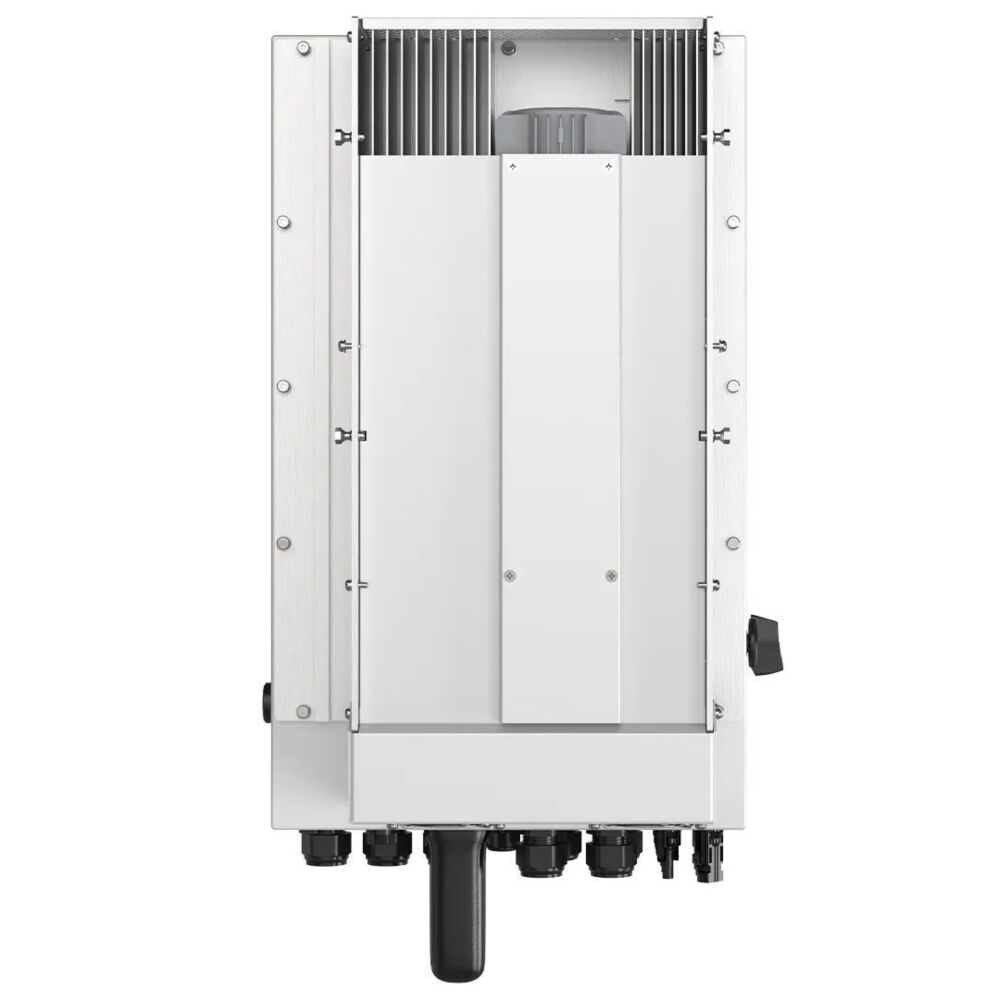

| Cooling concept | Natural cooling | Intelligent fan-cooling | |||
| Max. operation altitude | 3000 m | ||||
| Grid connection standard | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150, G98, CEI 0-21 | ||||
| Safety / EMC standard | IEC/EN 62109-1/-2, EN 61000-6-2/-3 | ||||
| Features | |||||

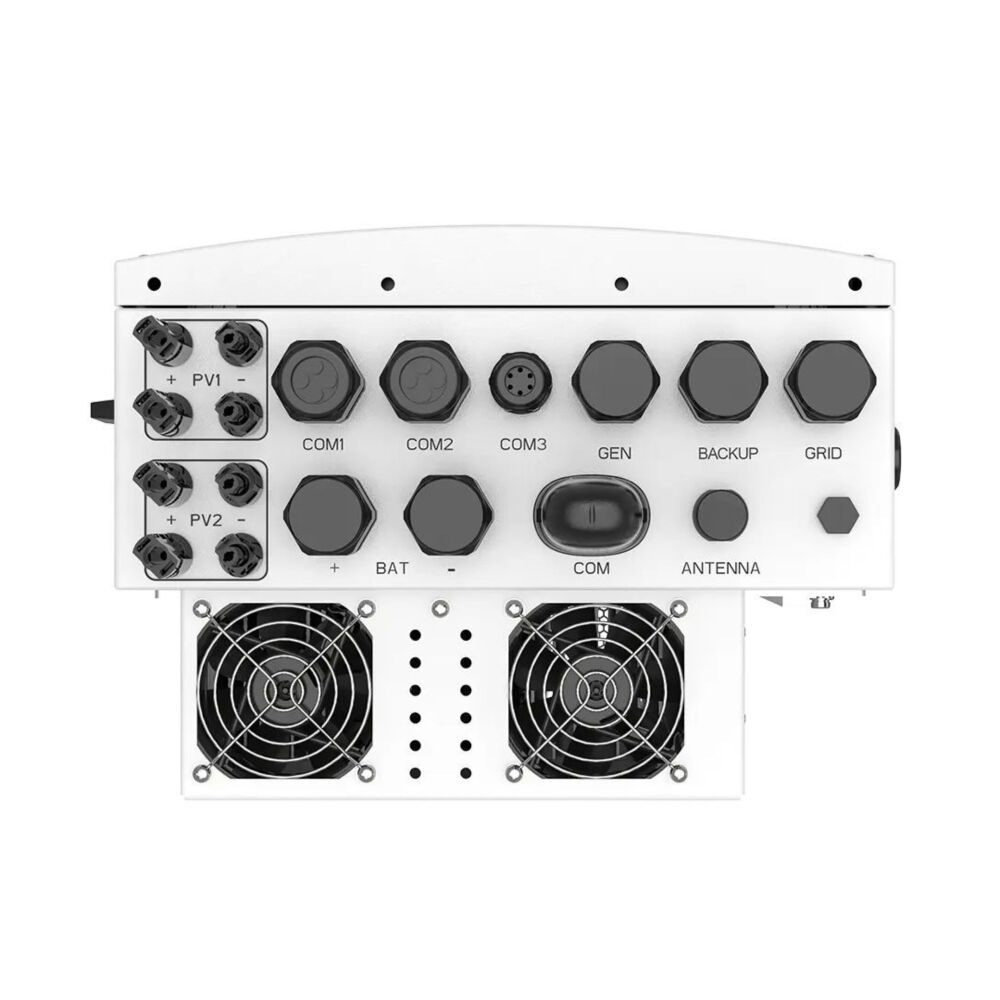

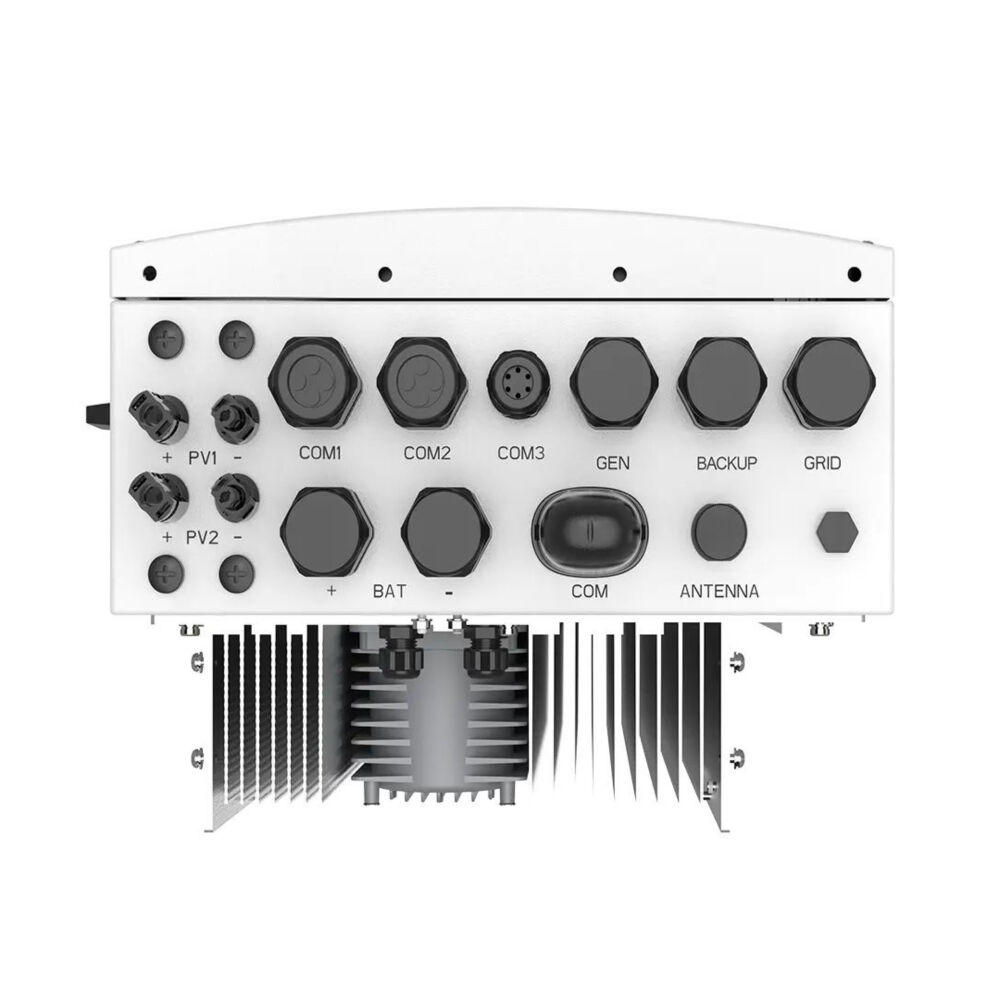

| DC connection | MC4 plug (PV port) / Terminal Block (BAT port) | ||||
| AC connection | Terminal Block | ||||
| Display | 7.0" LCD display & Bluetooth + APP | ||||
| Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN | ||||
