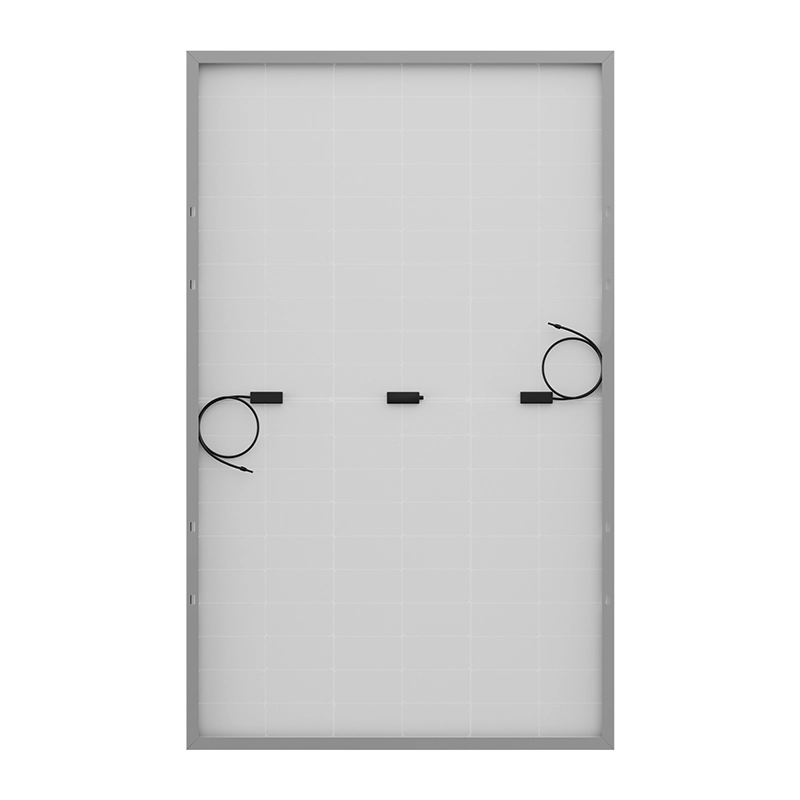

ORY425-54M-T8 P-Type Solar Panel: 425W High Power, 21.7% High Efficiency, 210mm Perc Cells. Black, CE/TUV Certified, 25-Year Warranty, Perfect for PV Systems.
Product Information
| Model | ORY425-54M-T8 |
| Rated Power | 425W |
| Dimension | 1722x1134x30mm |
| Weight | 21.5Kg |
| No. Of Cells | 108 |
| Cell Type | 210mm Perc |
| Module Color | Black |
| Efficiency | 21.70% |
| Certification | CE/TUV |
| Warranty | 25Years |
Specifications
| Cell Orientation | 108(6x18) | ||||
| Dimension | 1722x1134x30mm | ||||
| Weight | 21.5kg | ||||
| Glass | 3.2mm AR Coating Tempered Glass | ||||
| Frame | Anodized aluminum alloy frame | ||||
| Junction Box | IP68,three diodes | ||||
| Output Cable | 4mm3,300mm or 1200mm Length can be customized | ||||
| Packaging | 36pcs/pallet, 936pcs/40'HQ | ||||
| Maximum Power(Pmax) | 405w | 410w | 415w | 420w | 425w |
| Maximum Power Voltage(Vmp) | 31.24V | 31.43V | 31.64V | 31.83V | 32.03V |
| Maximum Power Current(Imp) | 12.97A | 13.05A | 13.13A | 13.21A | 13.29A |
| Open-circuit Voltage(Voc) | 37.25V | 37.5V | 37.75V | 37.00V | 38.25V |
| Short-circuit Current(Isc) | 13.96A | 13.94A | 14.02A | 14.10A | 14.18A |
| Module Efficiency(%) | 20.70% | 21.00% | 21.30% | 21.50% | 21.70% |
