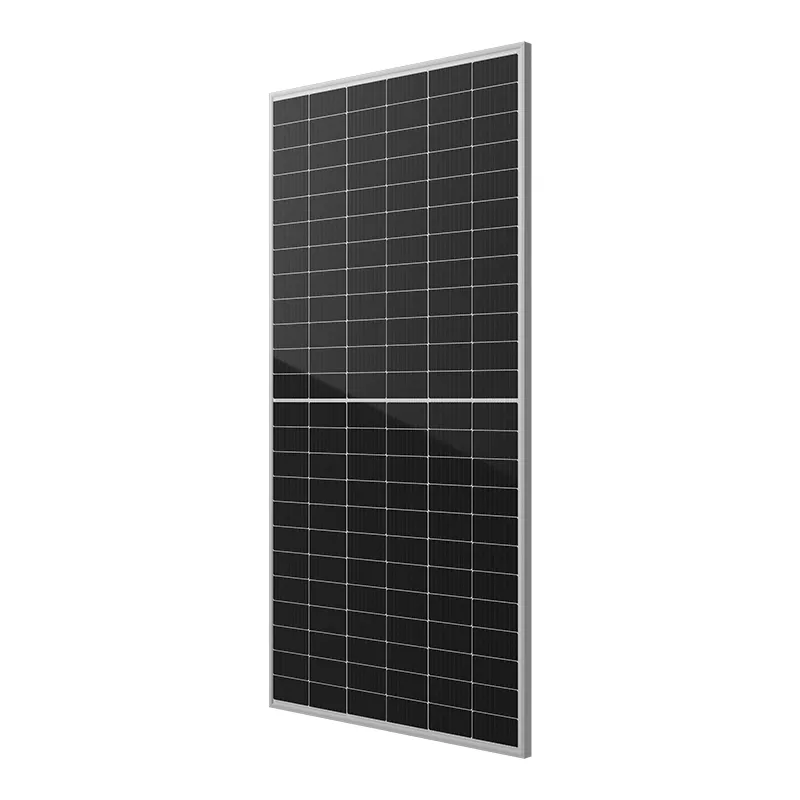

ORY545-565-72M-S P-Type Monocrystalline Solar Panel, 545-565W, 21.87% max efficiency, durable aluminum frame, ideal for residential & commercial PV systems.
Product Information
| Model | ORY545-565-72M-S |
| Dimension | 2278x1134x30mm |
| Weight | 31.8kg |
| Cell Type | P-type |
| Efficiency | 21.87% |
| Certification | CE/TUV |
| Warranty | 15 Years |
Specifications
| Cell Orientation | 144(6x24) | ||||
| Dimension | 2278x1134x30mm | ||||
| Weight | 31.8kg | ||||
| Glass | Front Glass:2.0mm AR Coating Tempered Glass | ||||
| Back Glass:2.0mm Glazed Semi-tempered Glass | |||||
| Frame | Anodized aluminum alloy frame | ||||

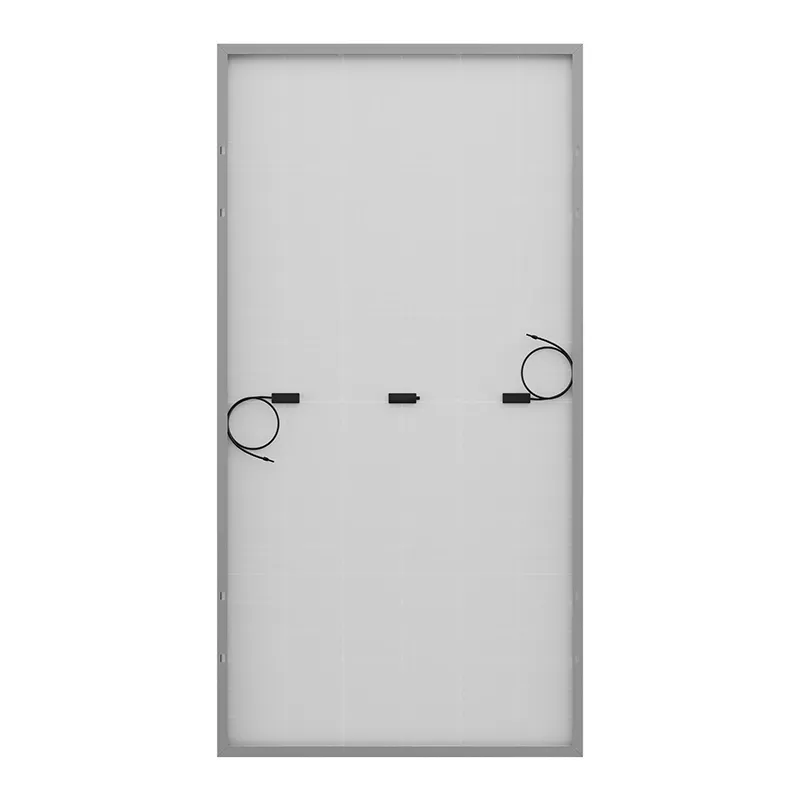

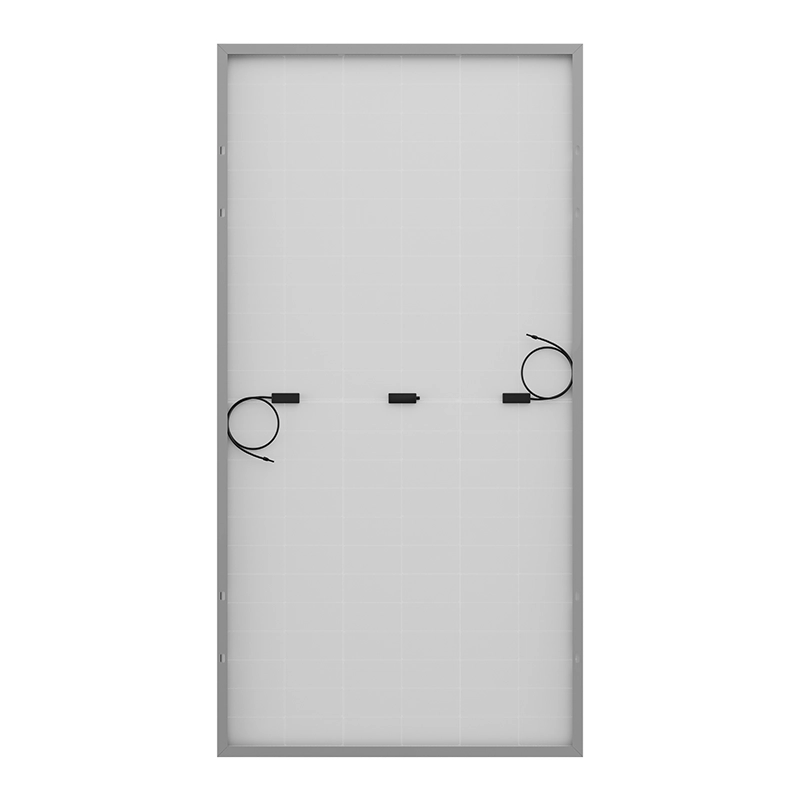

| Junction Box | IP68,three diodes | ||||
| Output Cable | 4mm², Portrait 300mm/Landscape | ||||
| Packaging | 36pcs/pallet,720pcs/40′HQ | ||||
| Maximum Power(Pmax) | 545W | 550W | 555W | 560W | 565W |
| Maximum Power Voltage(Vmp) | 41.80V | 41.96V | 42.12V | 42.28V | 42.44V |
| Maximum Power Current(Imp) | 13.04A | 13.11A | 13.18A | 13.25A | 13.32A |
| Open-circuit Voltage(Voc) | 49.76V | 49.92V | 50.08V | 50.24V | 50.40V |
| Short-circuit Current(lsc) | 13.93A | 14.00A | 14.07A | 14.14A | 14.21A |
| Module Efficiency(%) | 21.10% | 21.30% | 21.50% | 21.70% | 21.87% |
